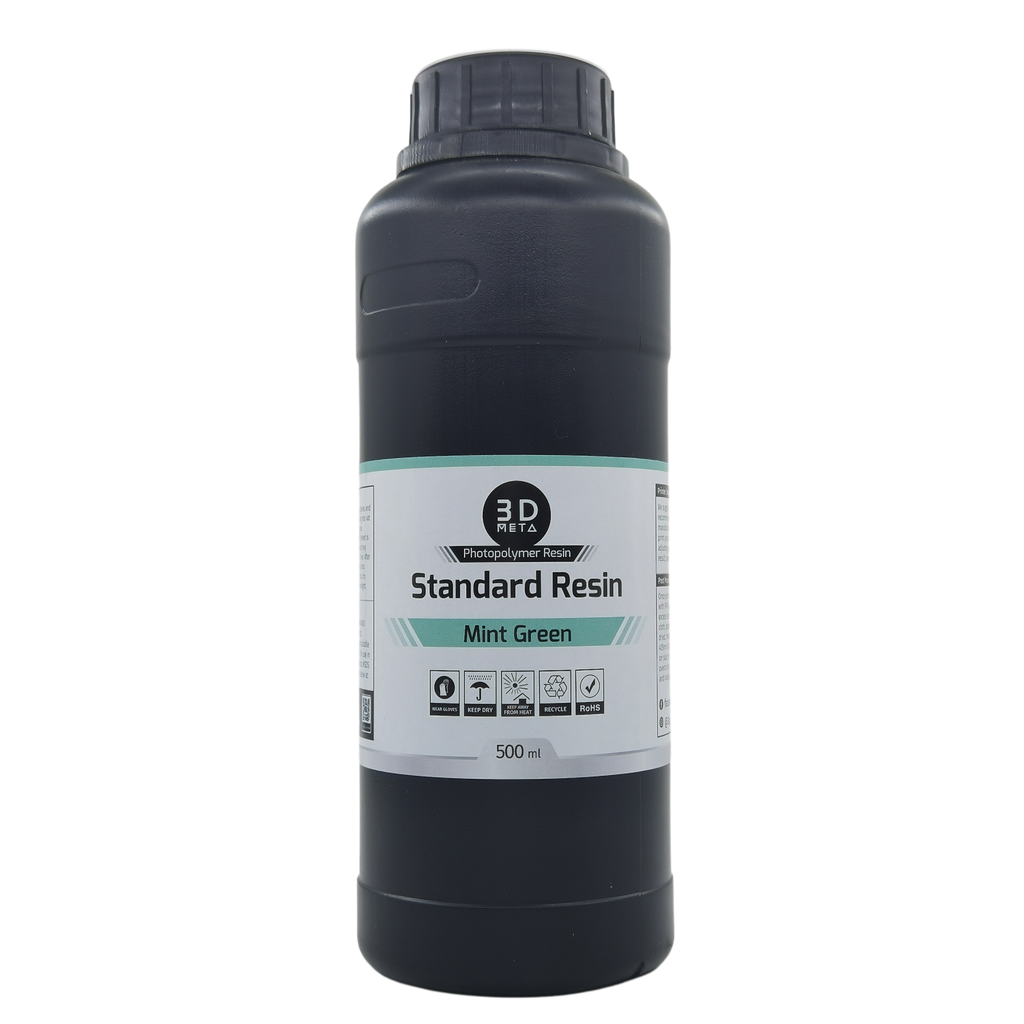

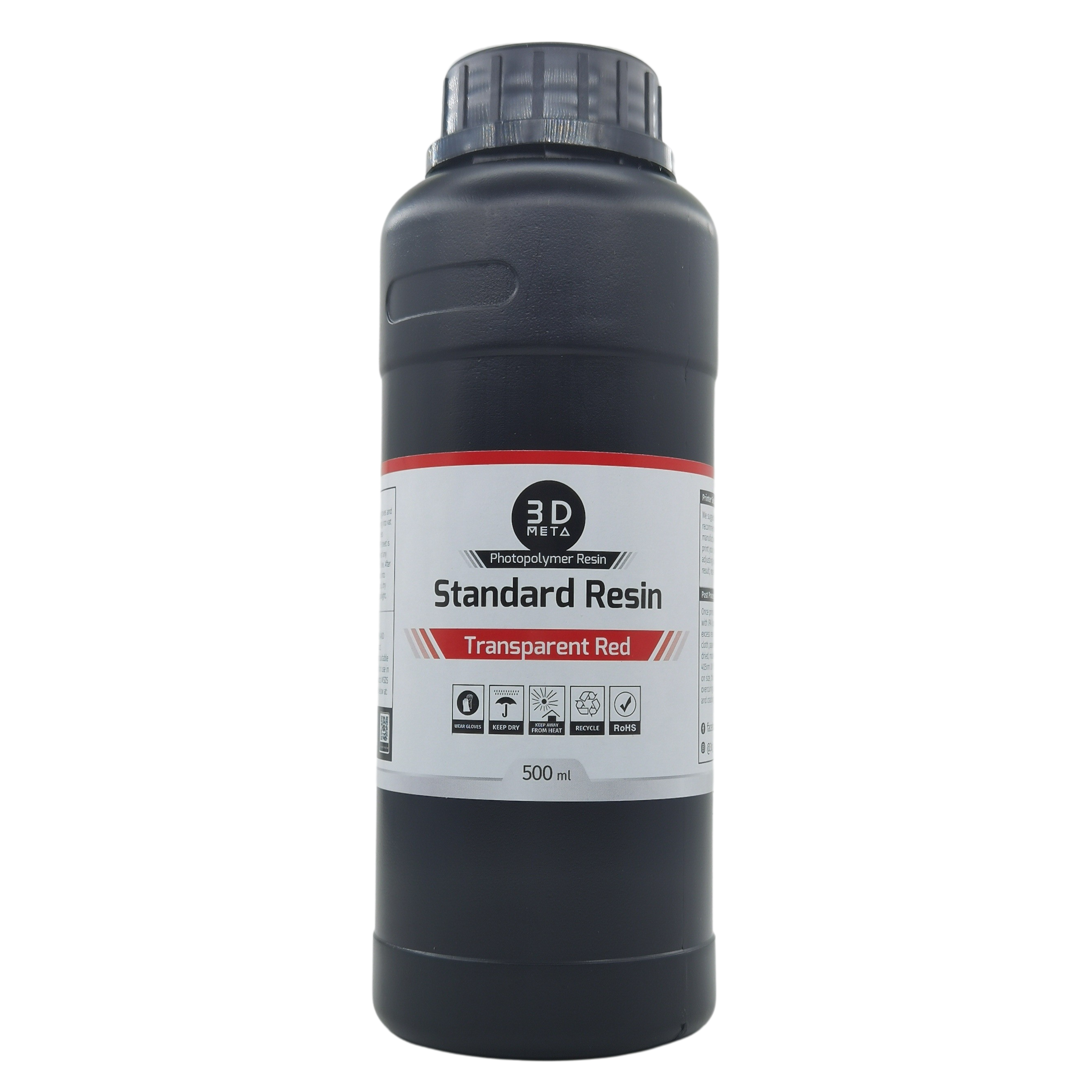

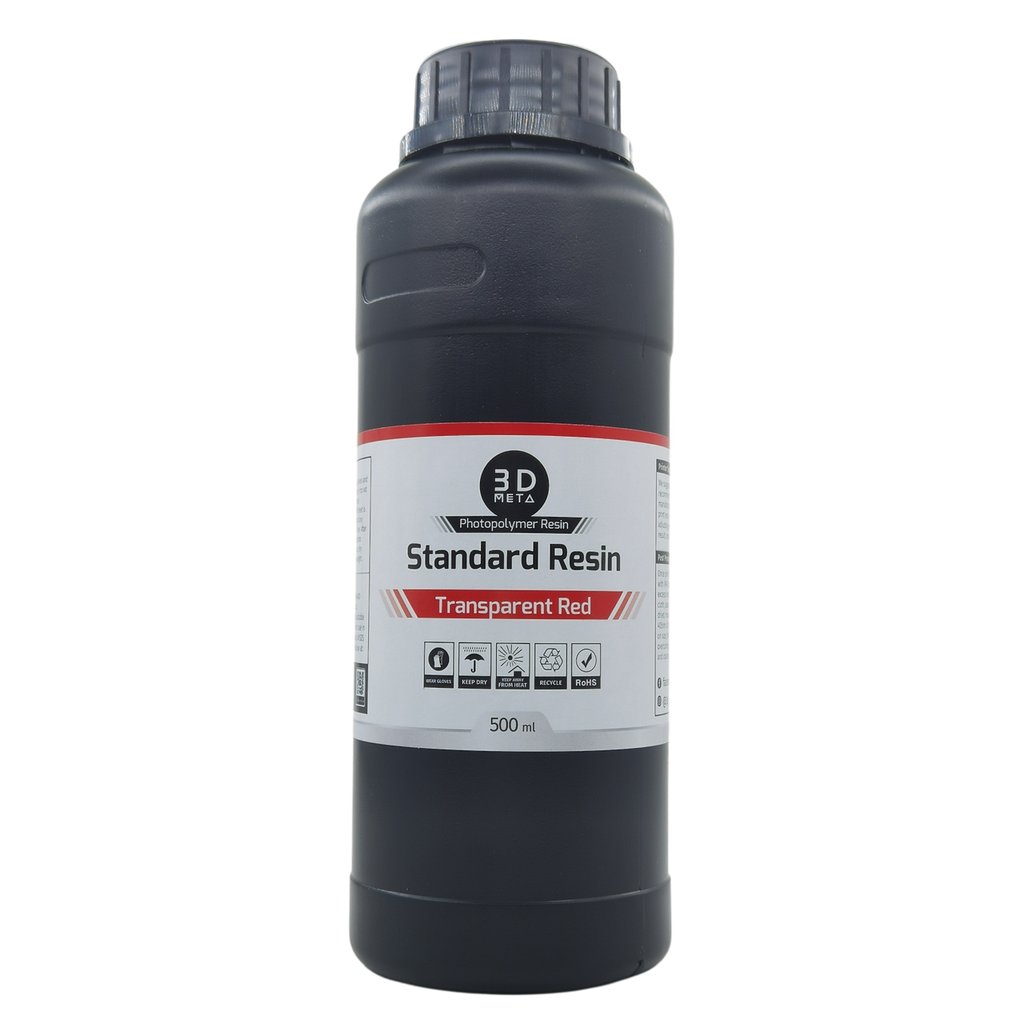

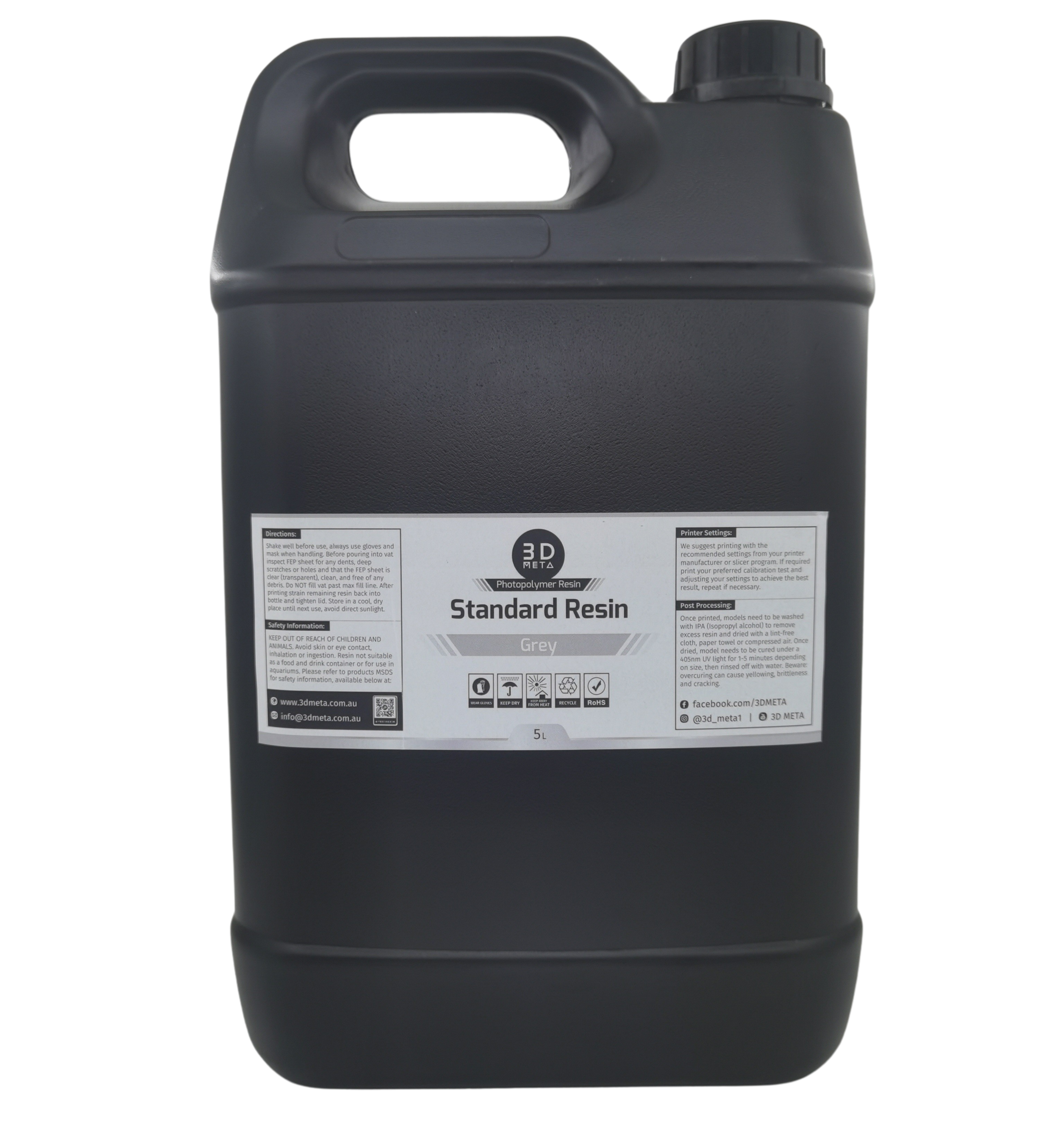

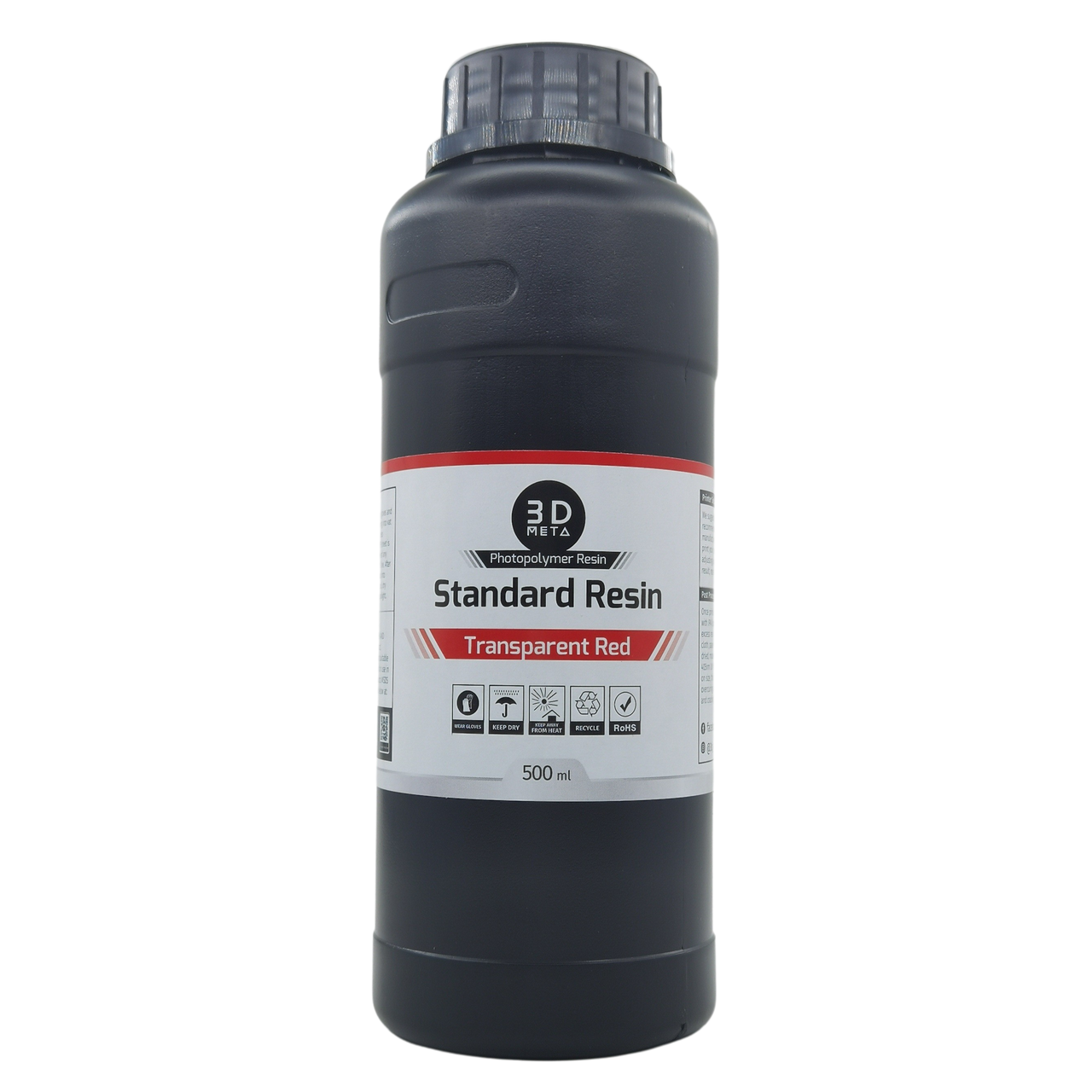

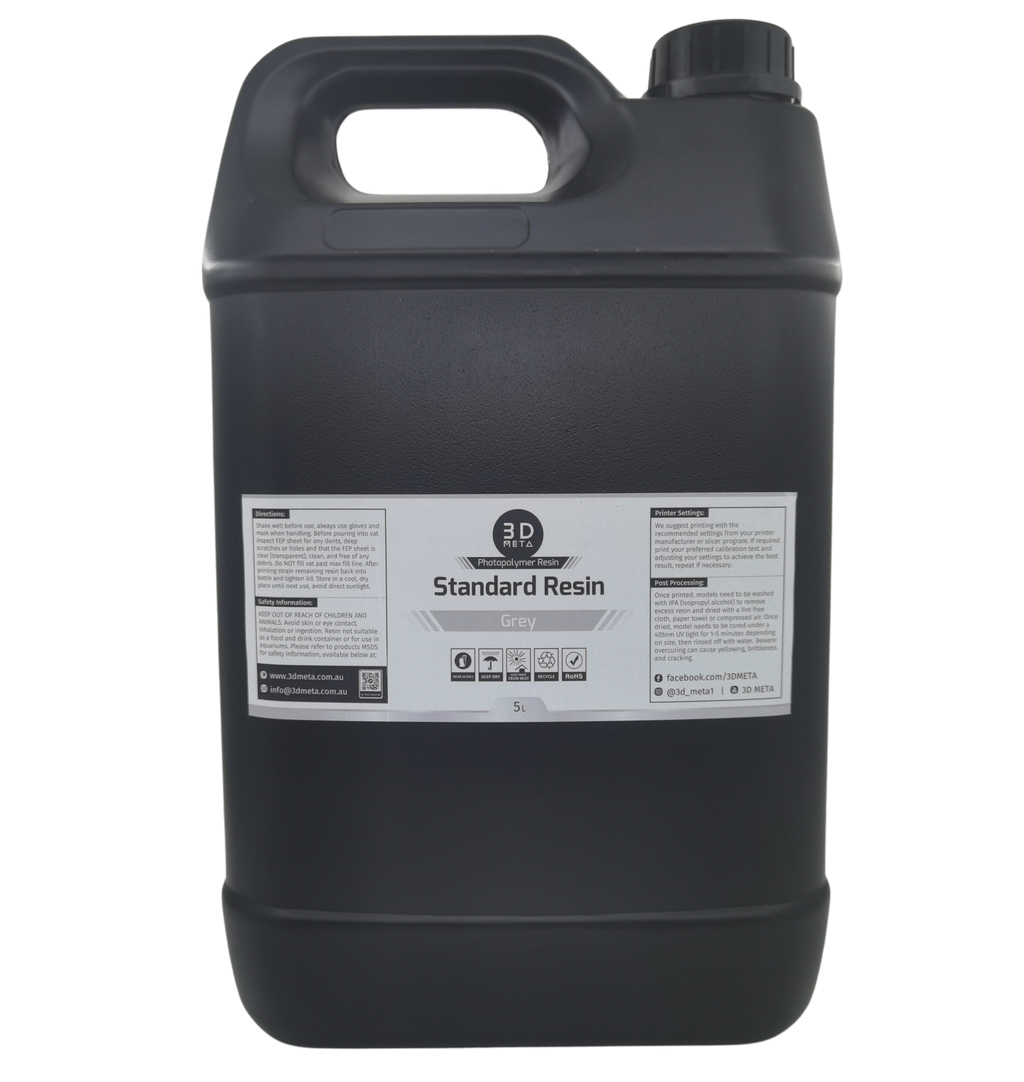

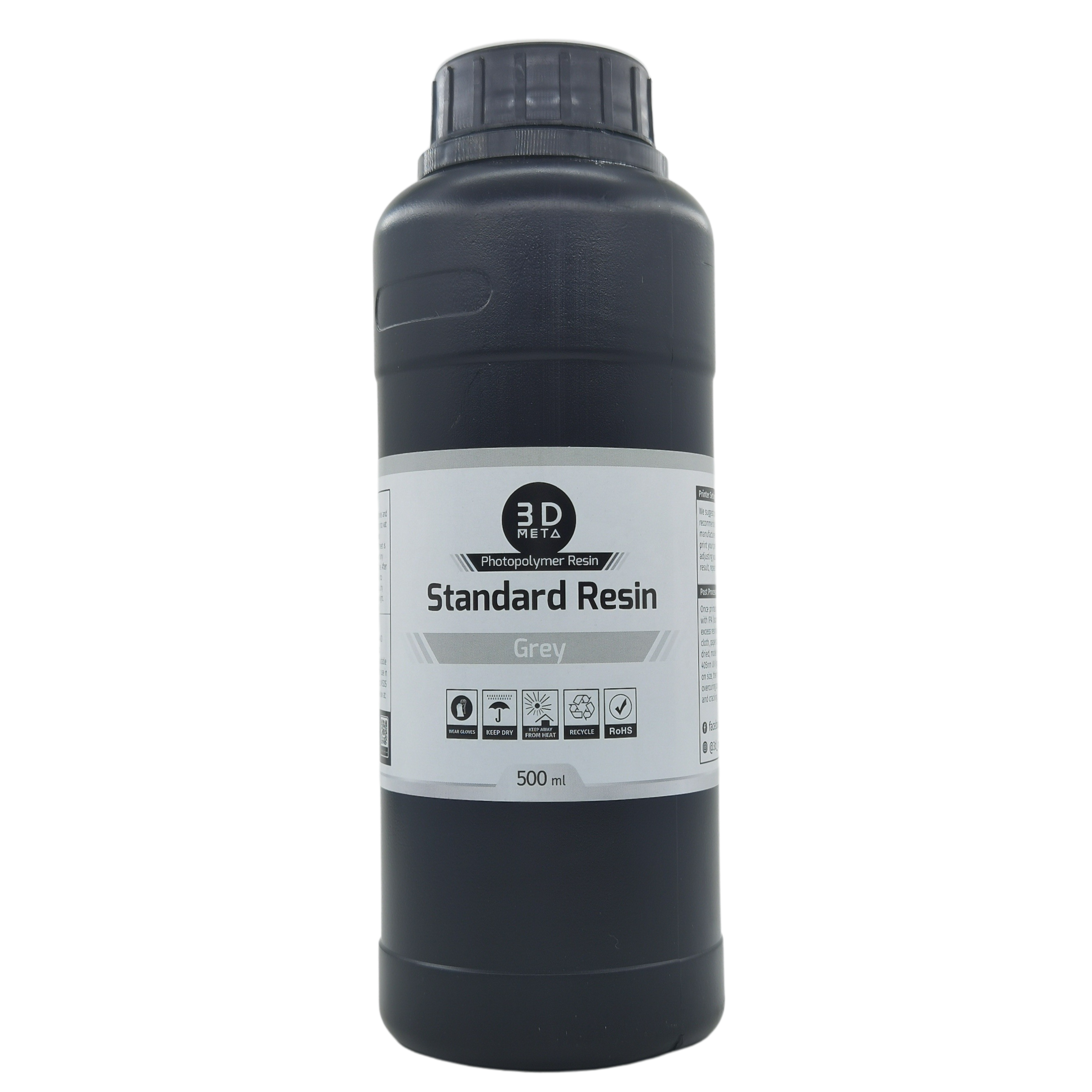

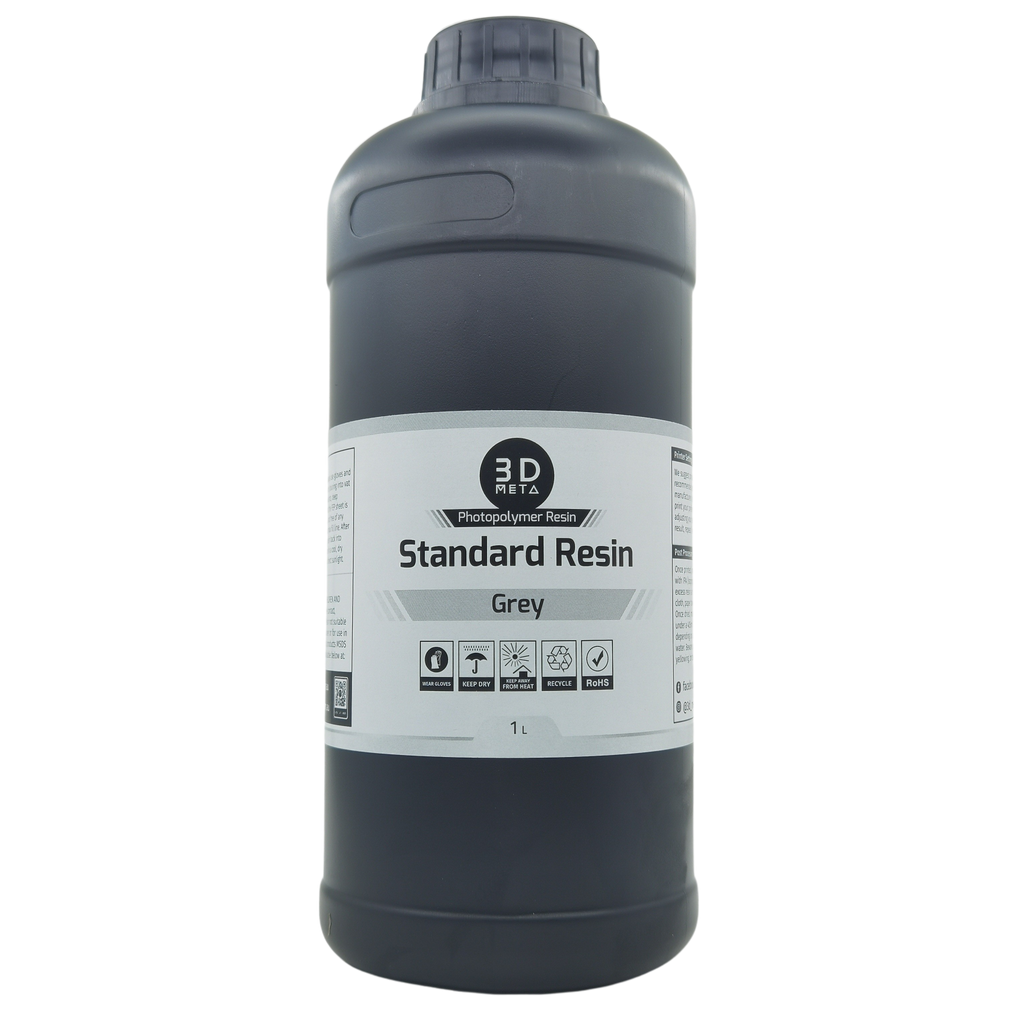

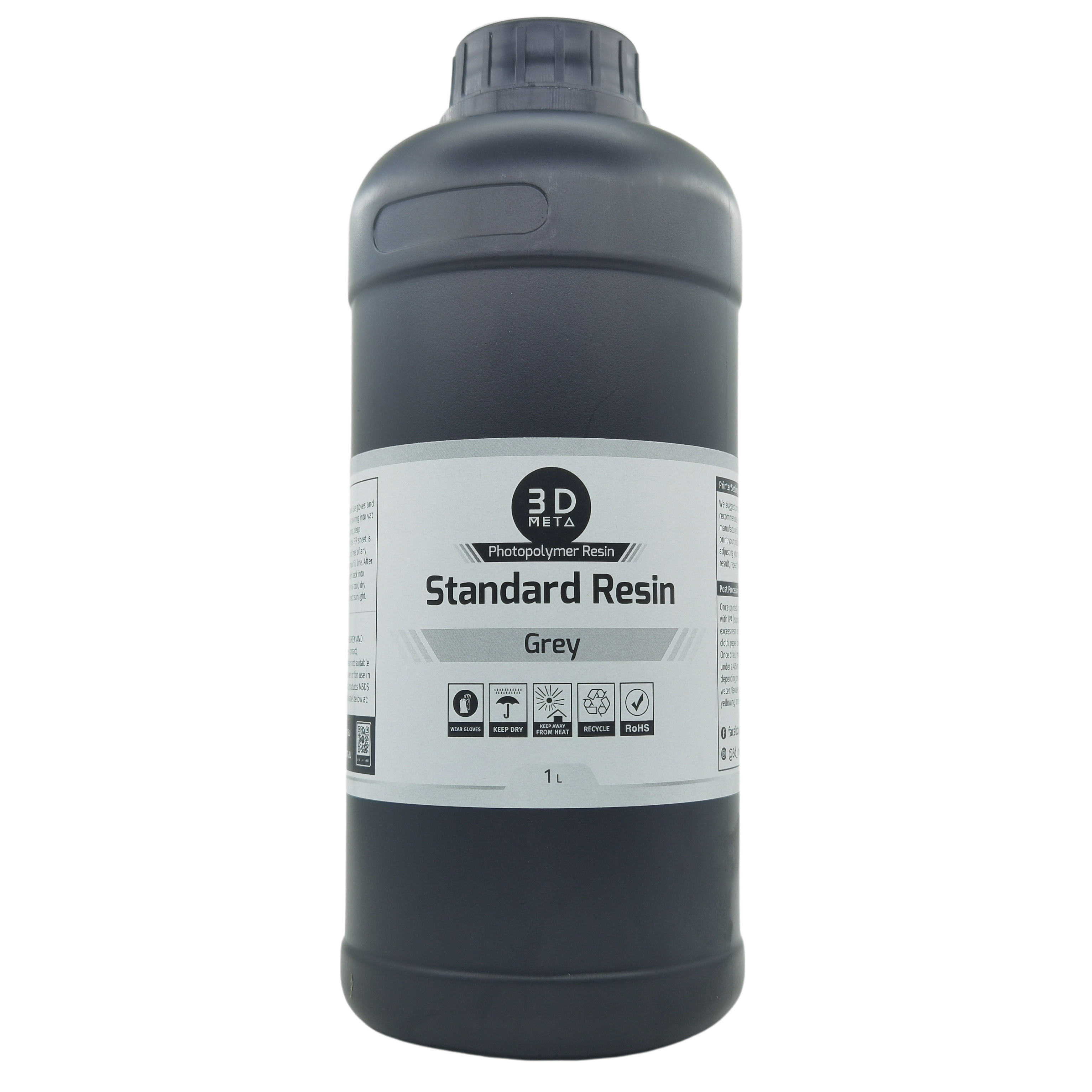

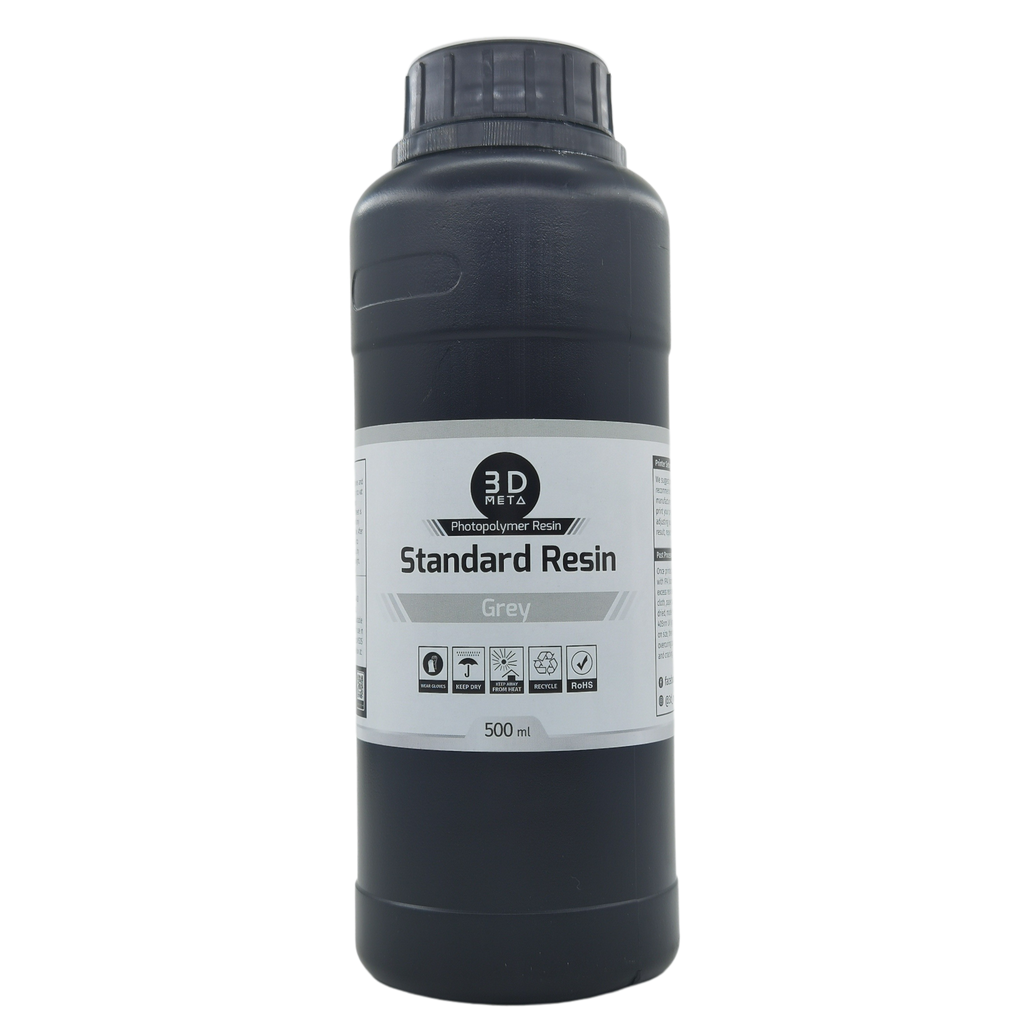

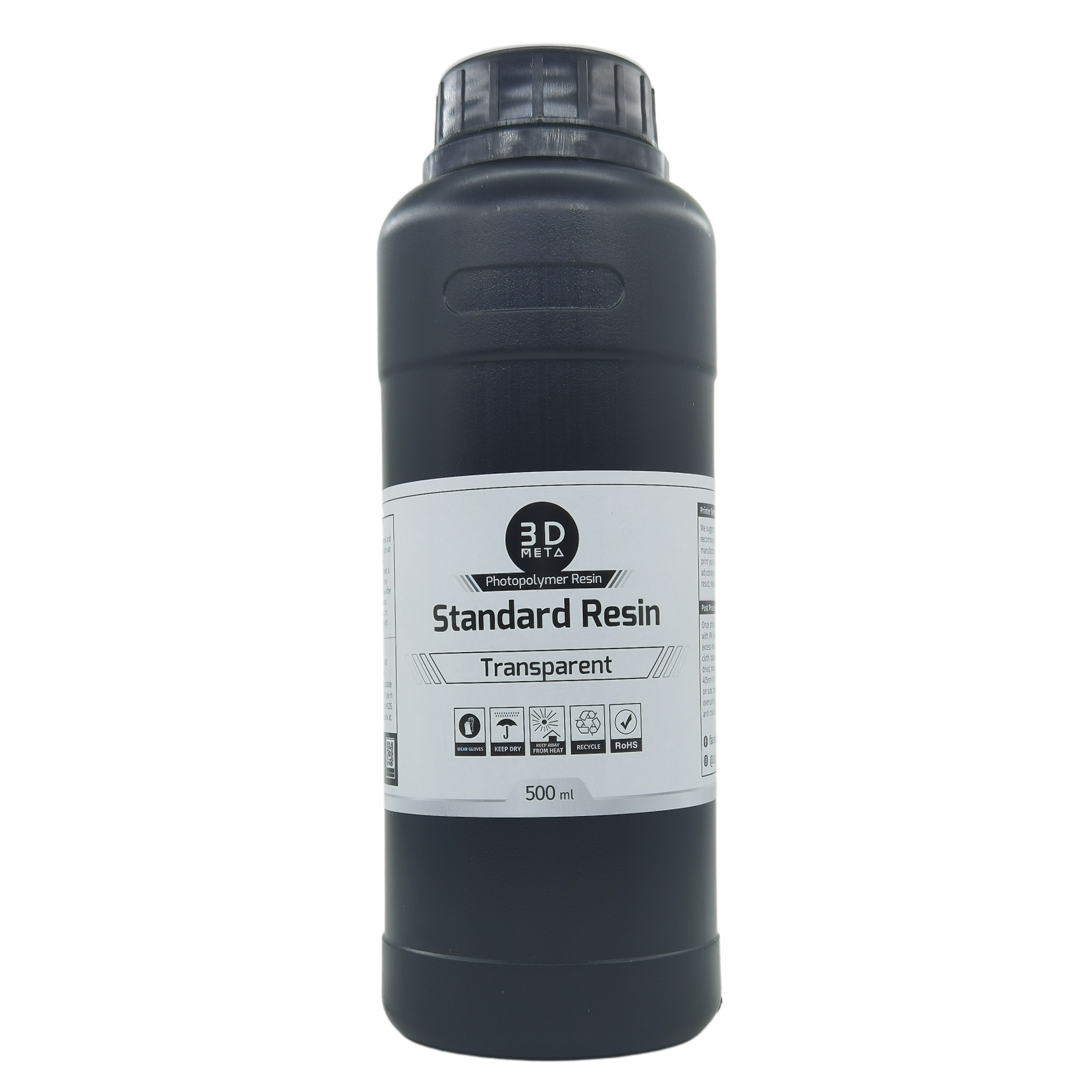

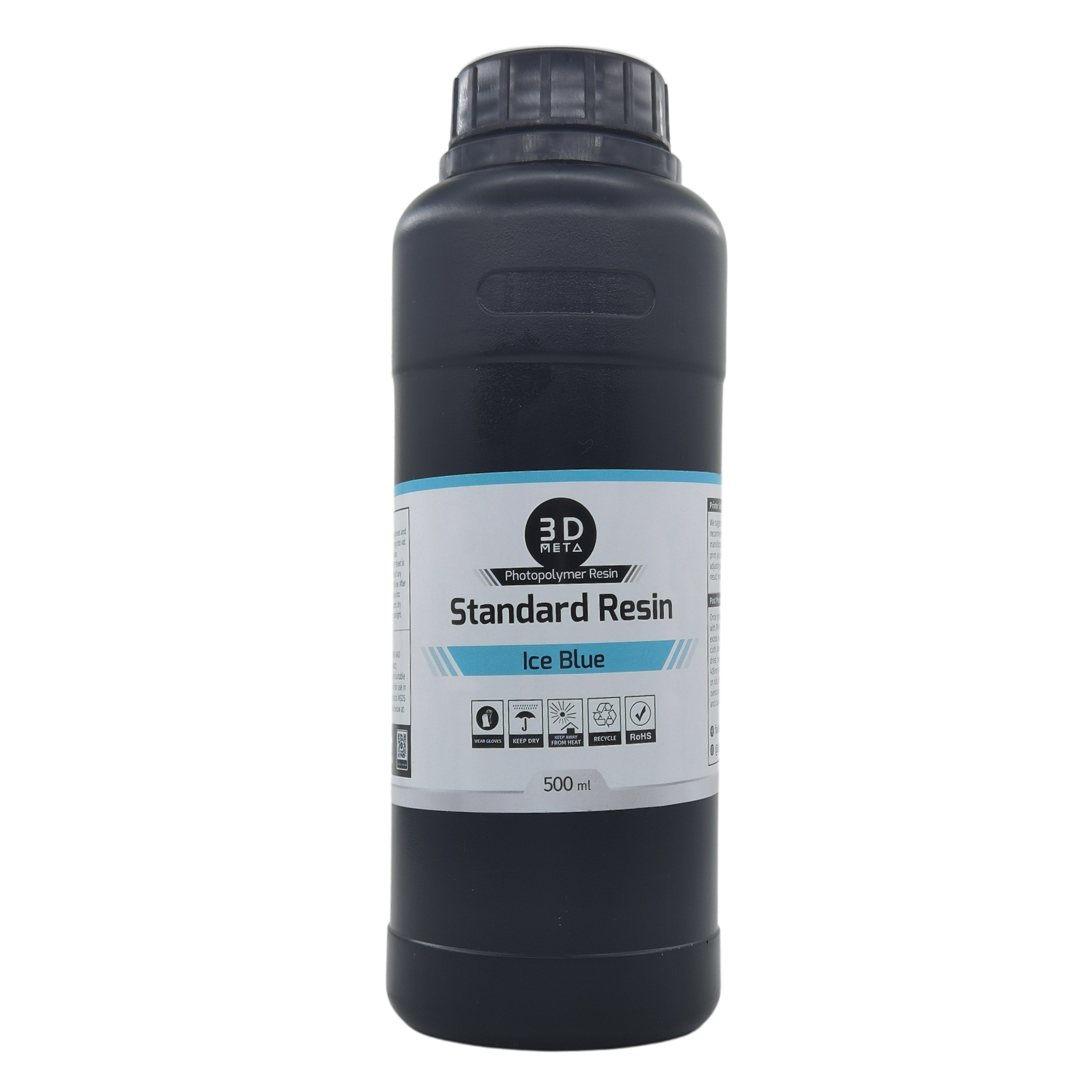

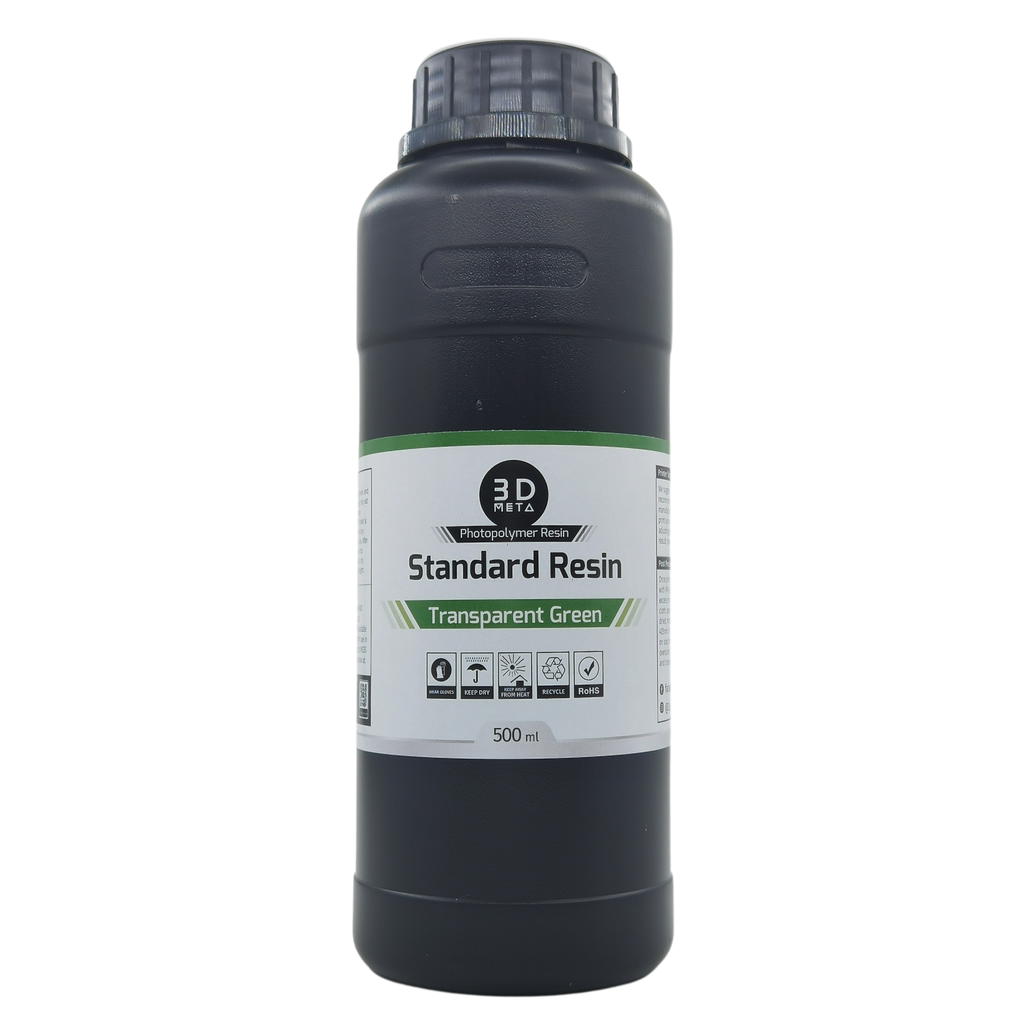

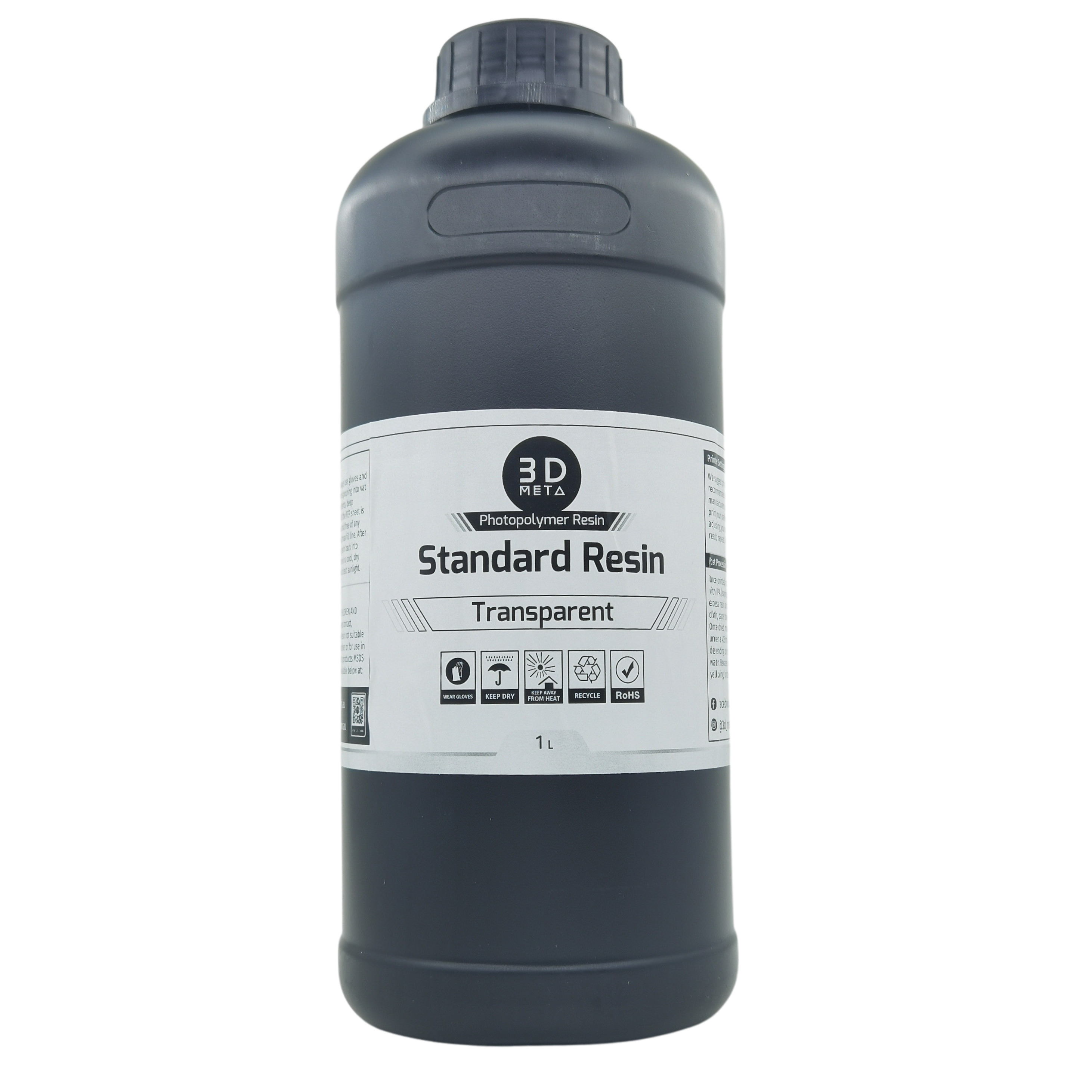

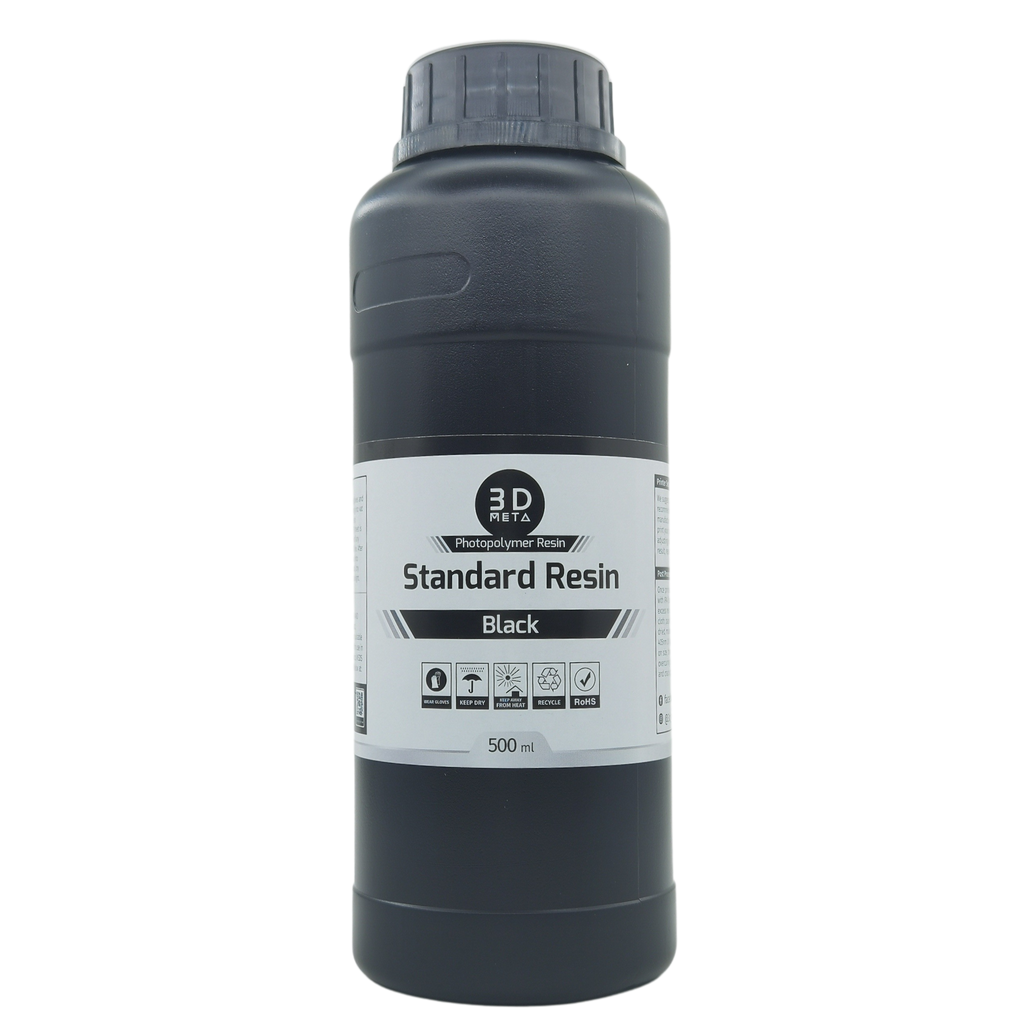

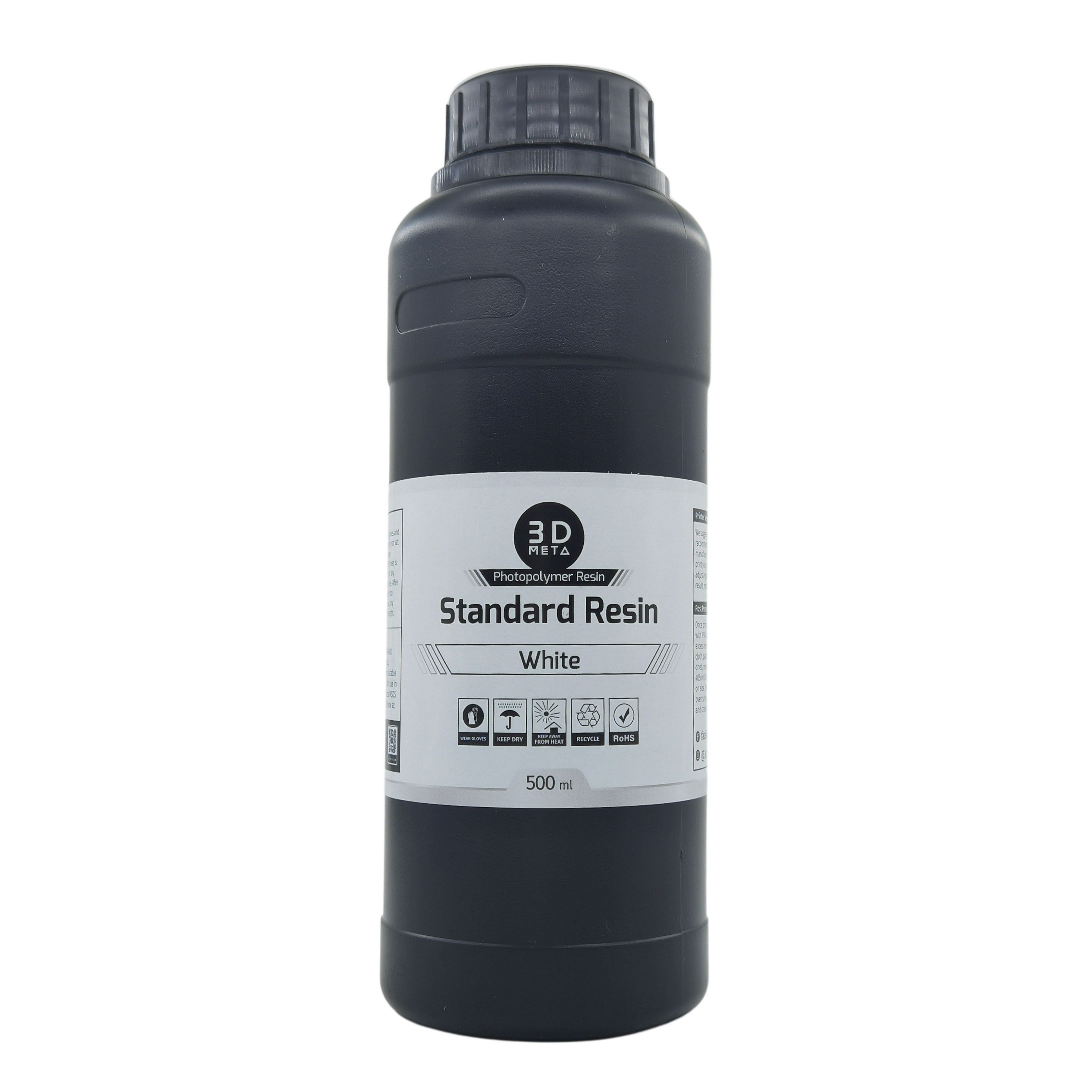

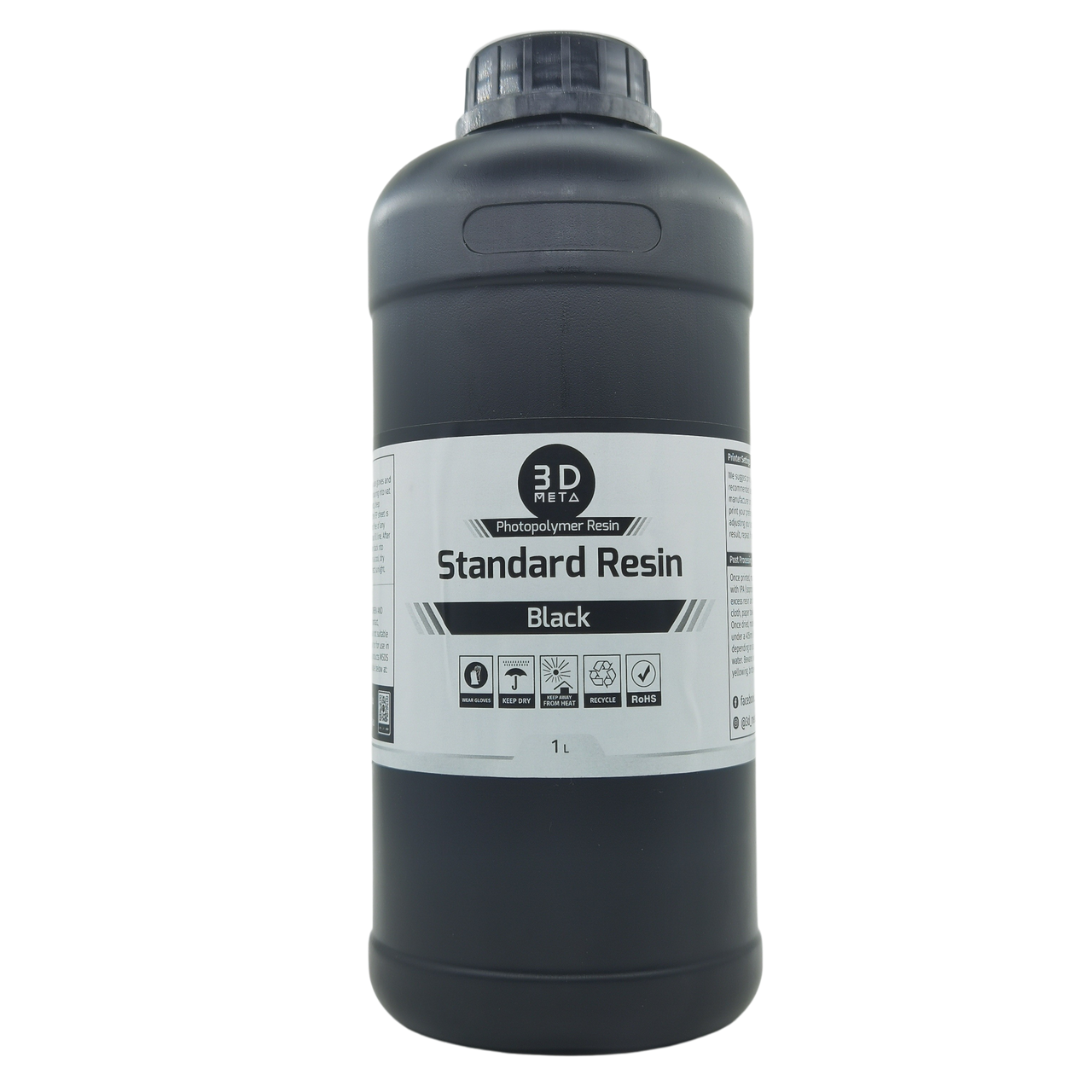

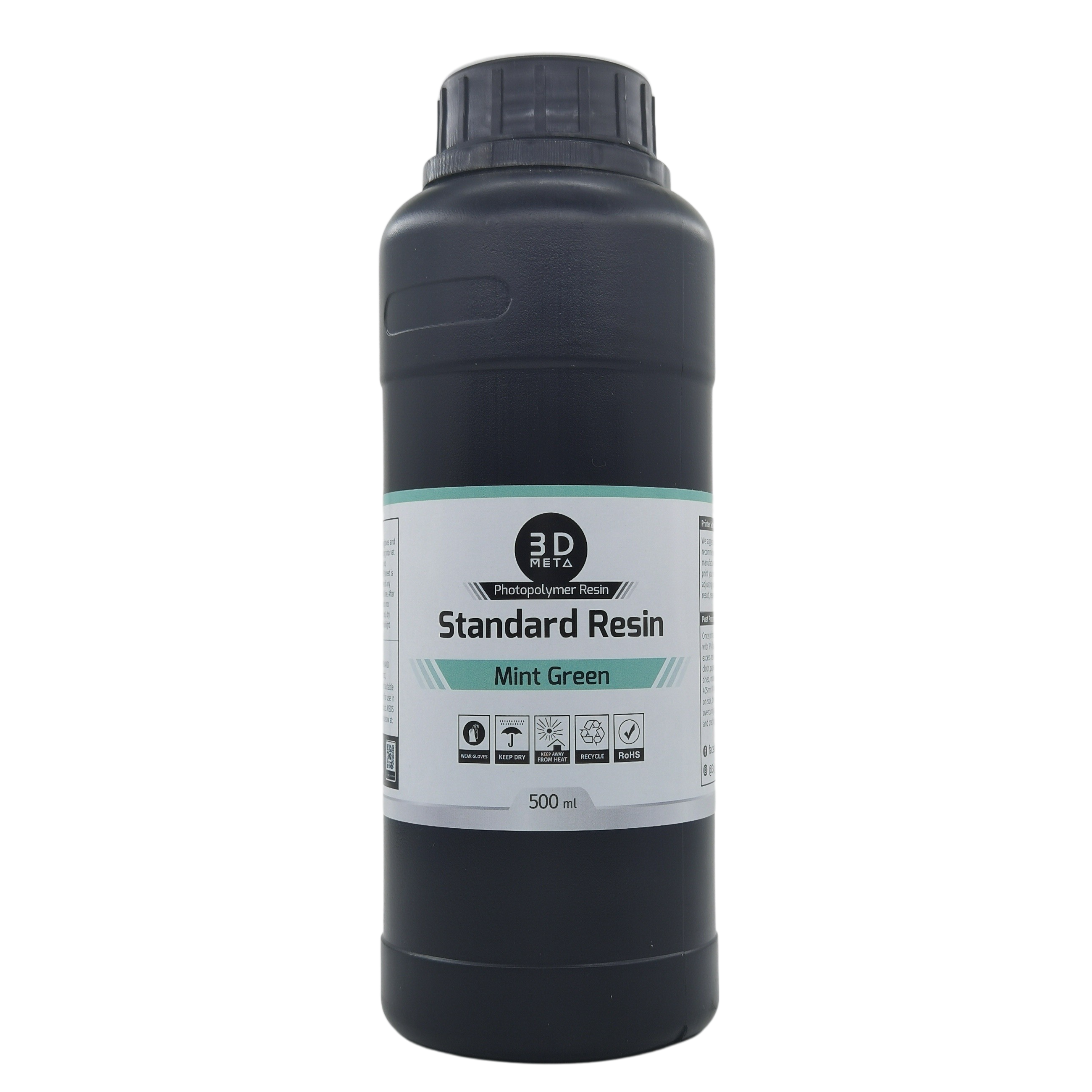

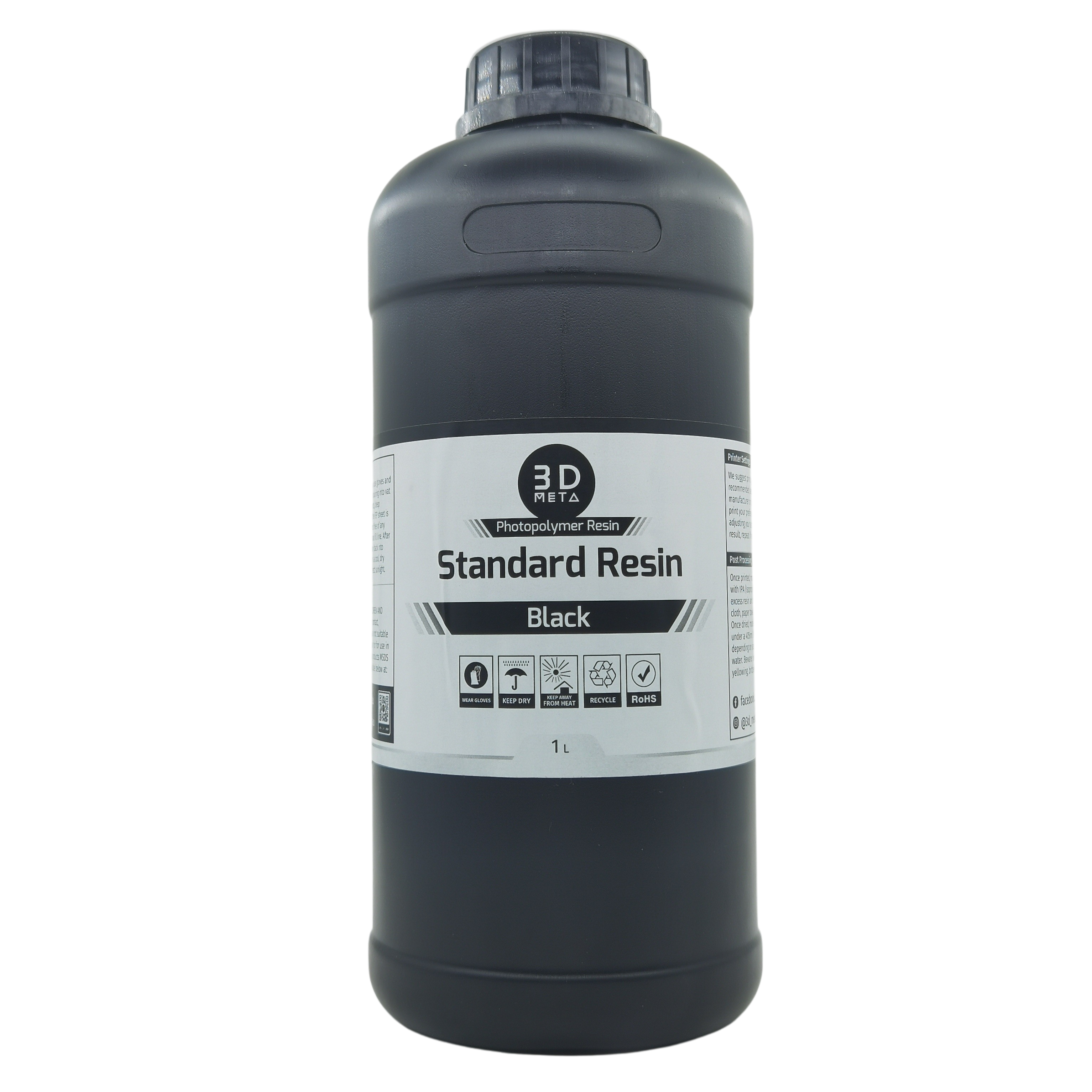

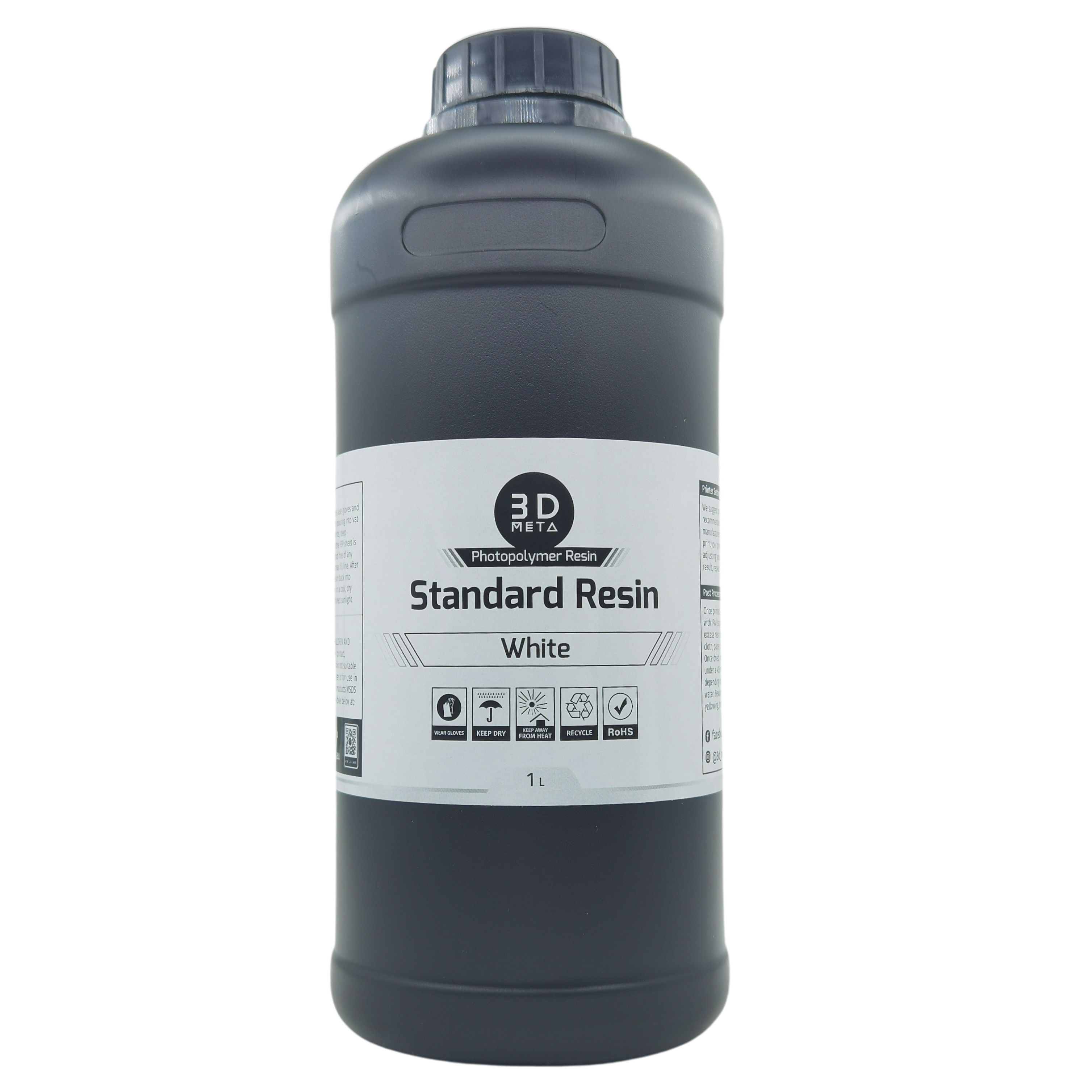

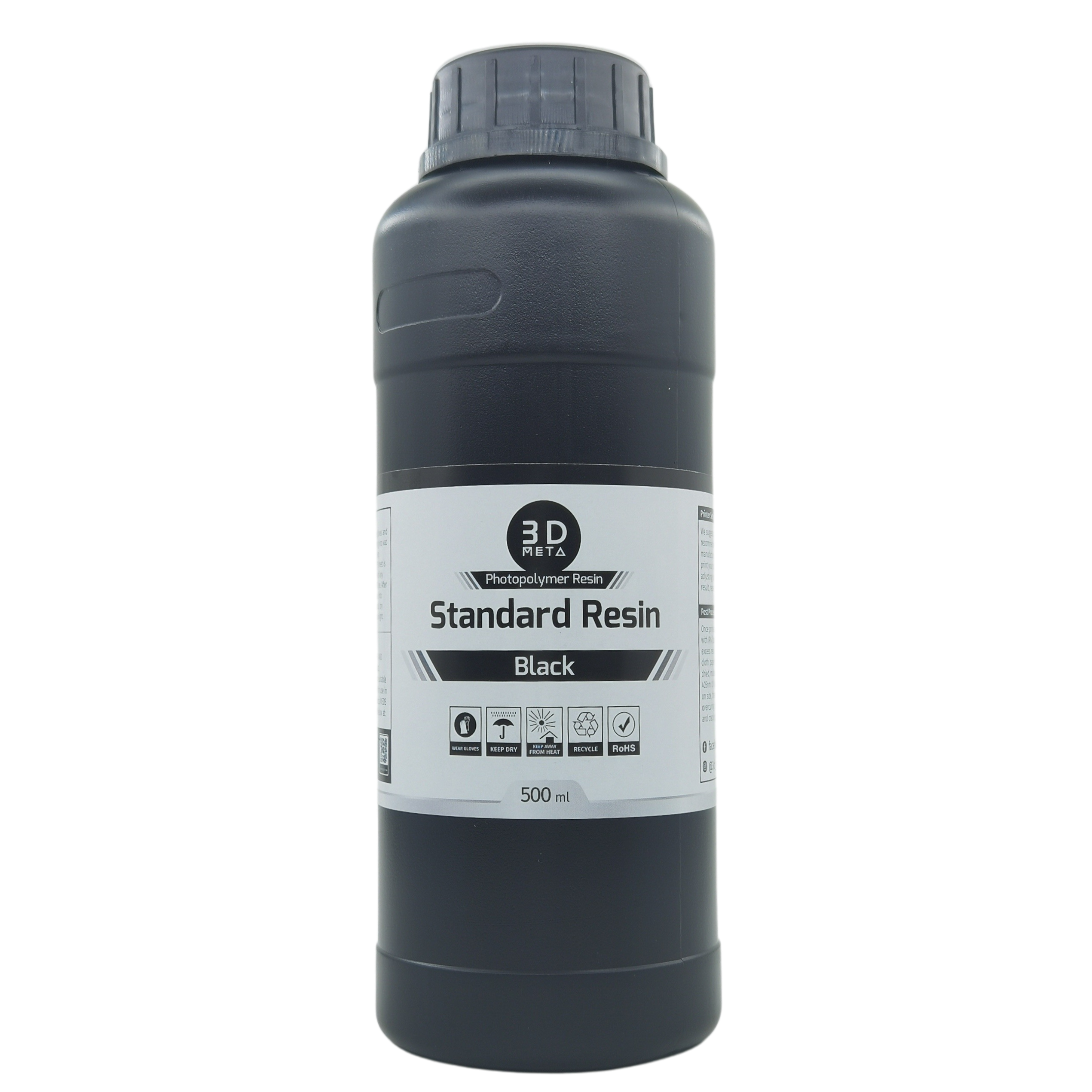

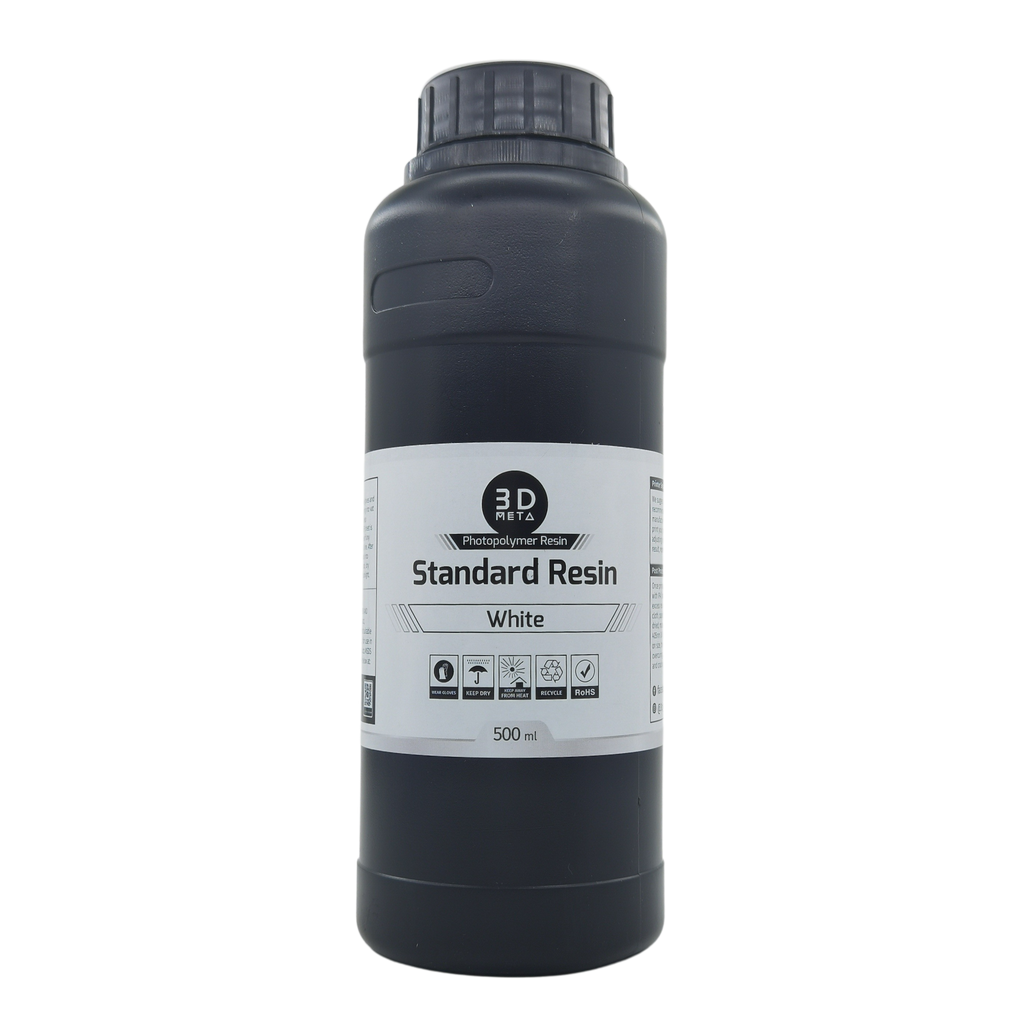

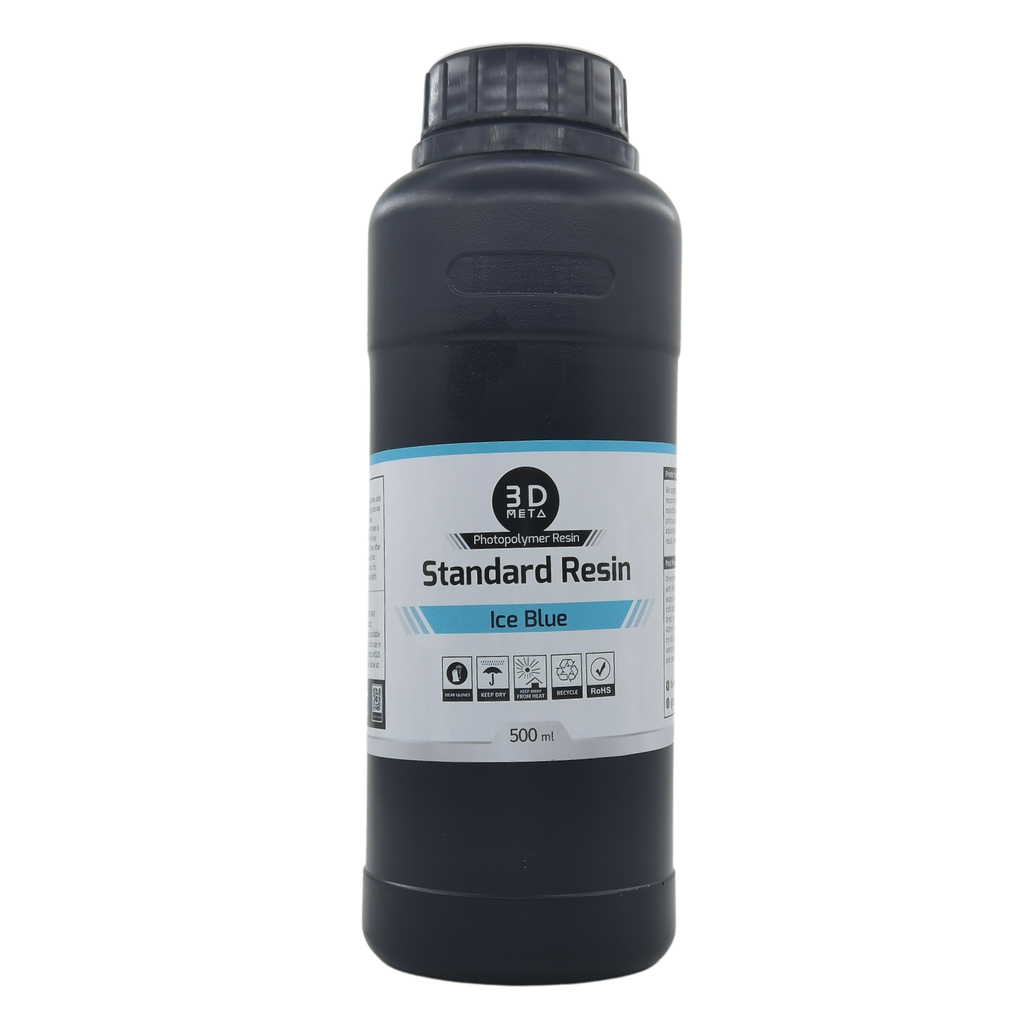

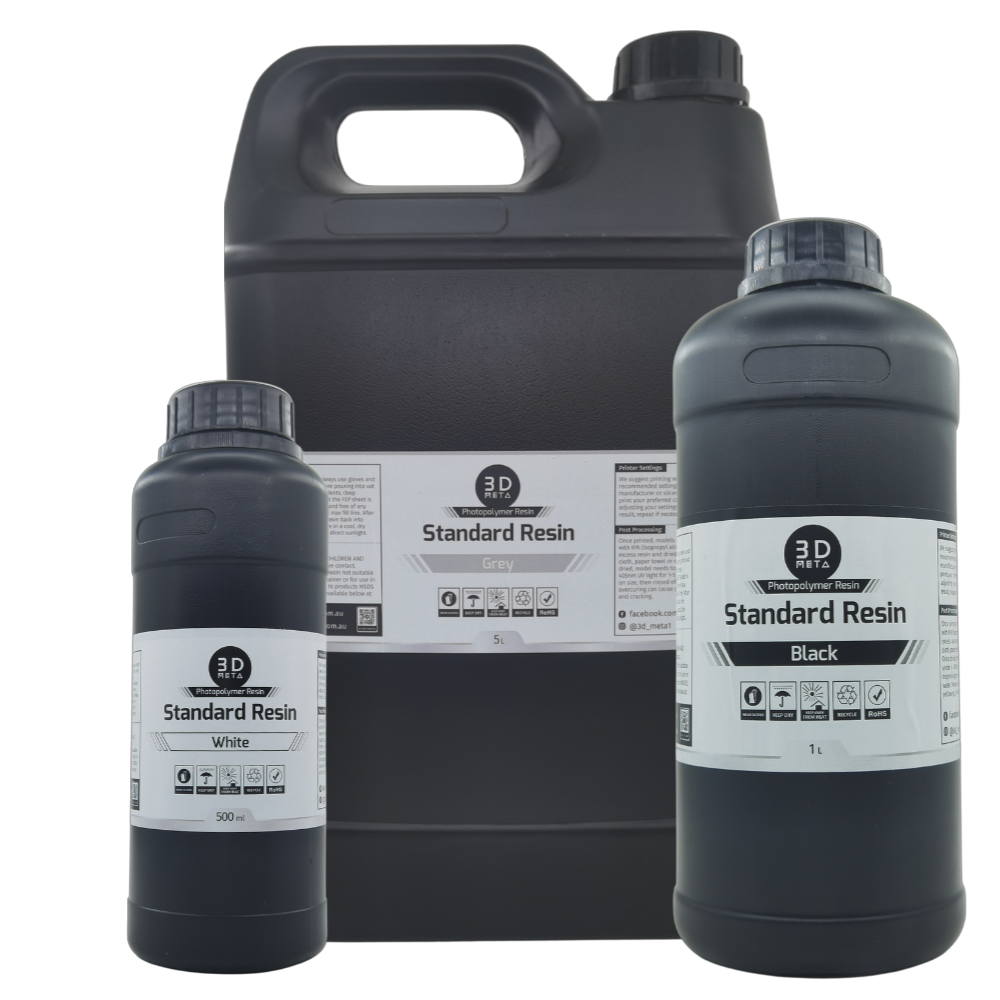

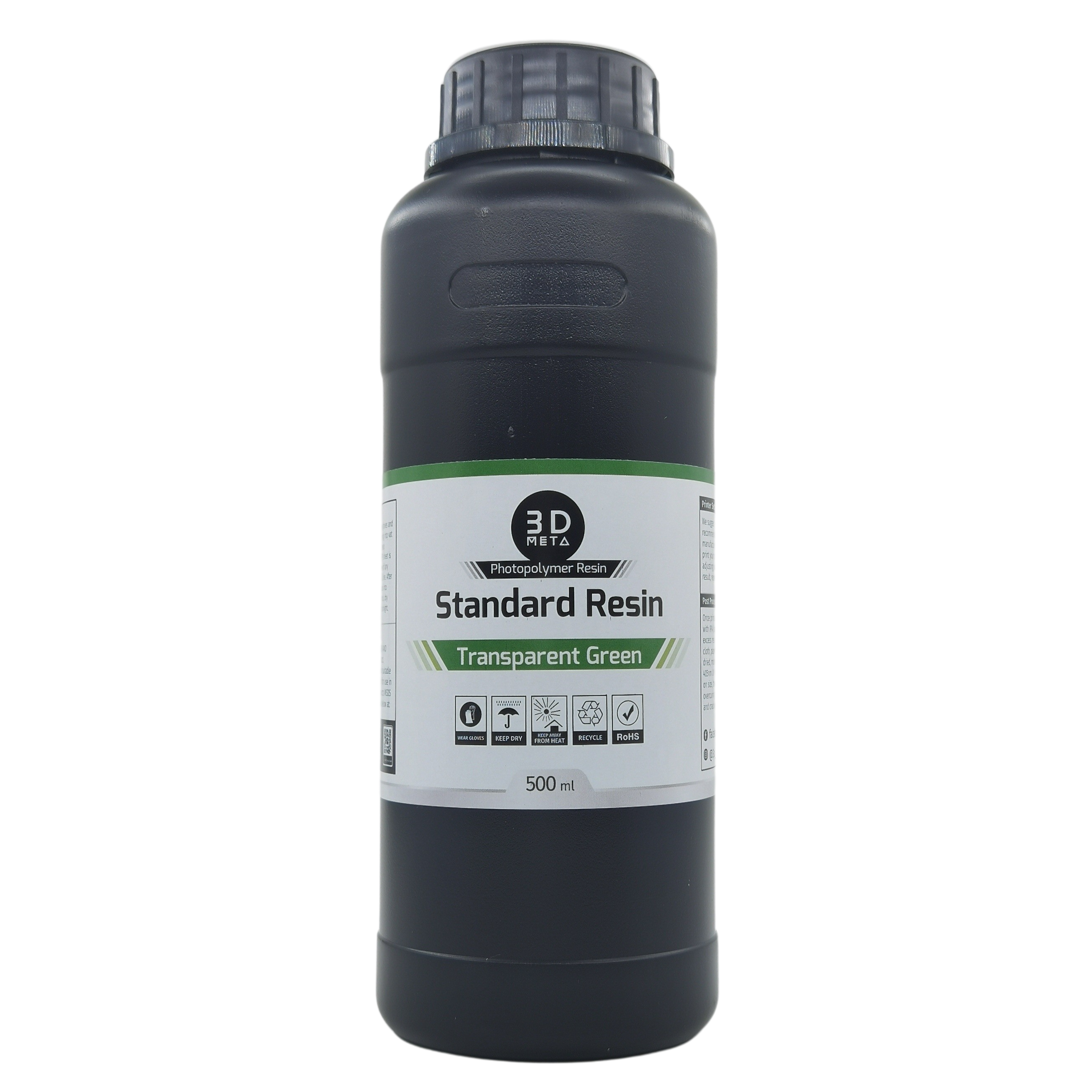

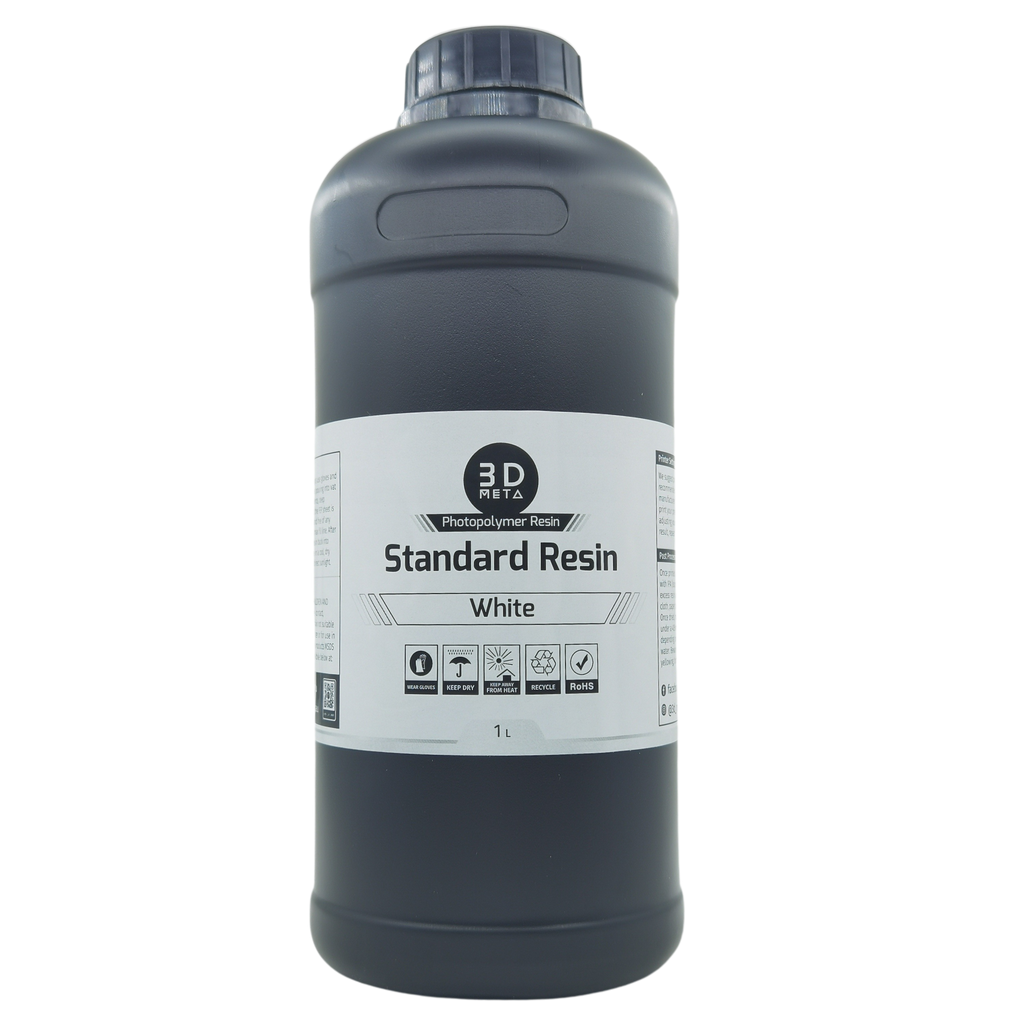

Standard 3D Printing Resin

No reviews

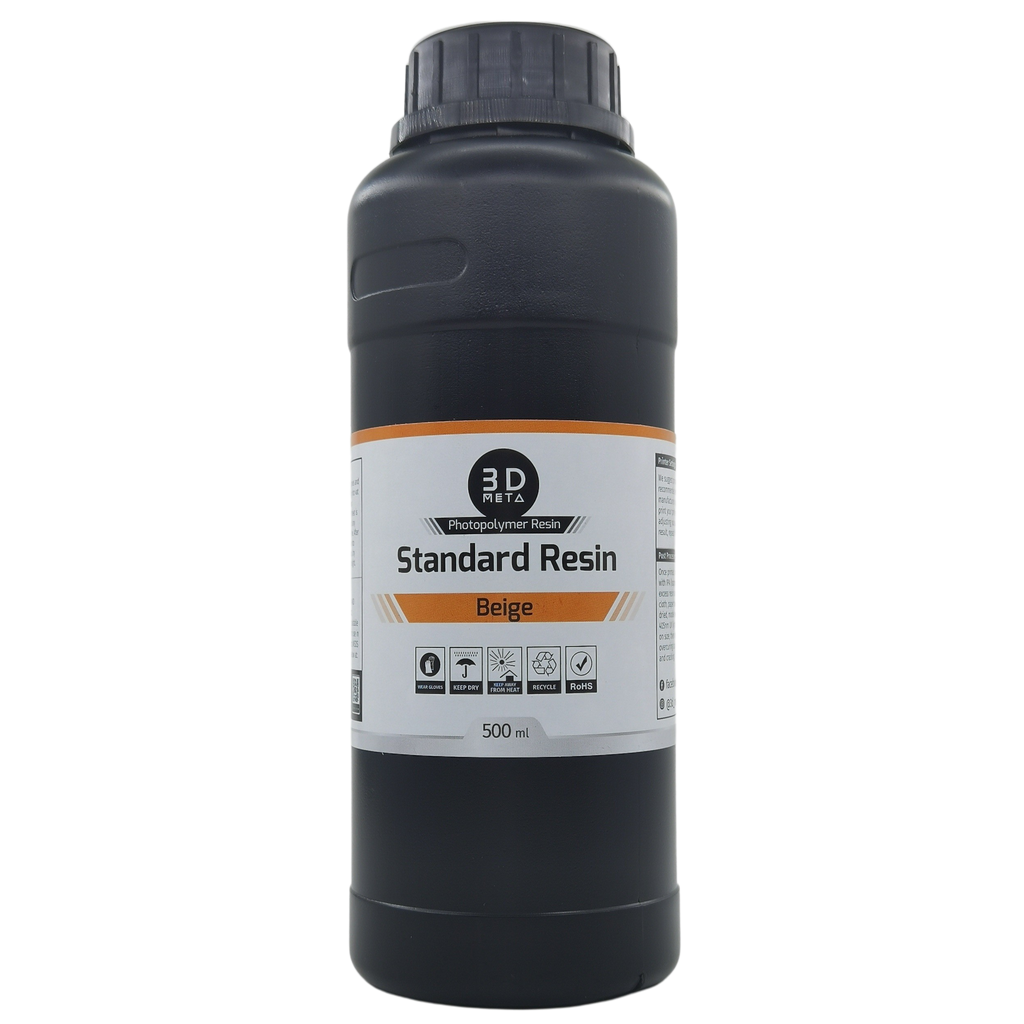

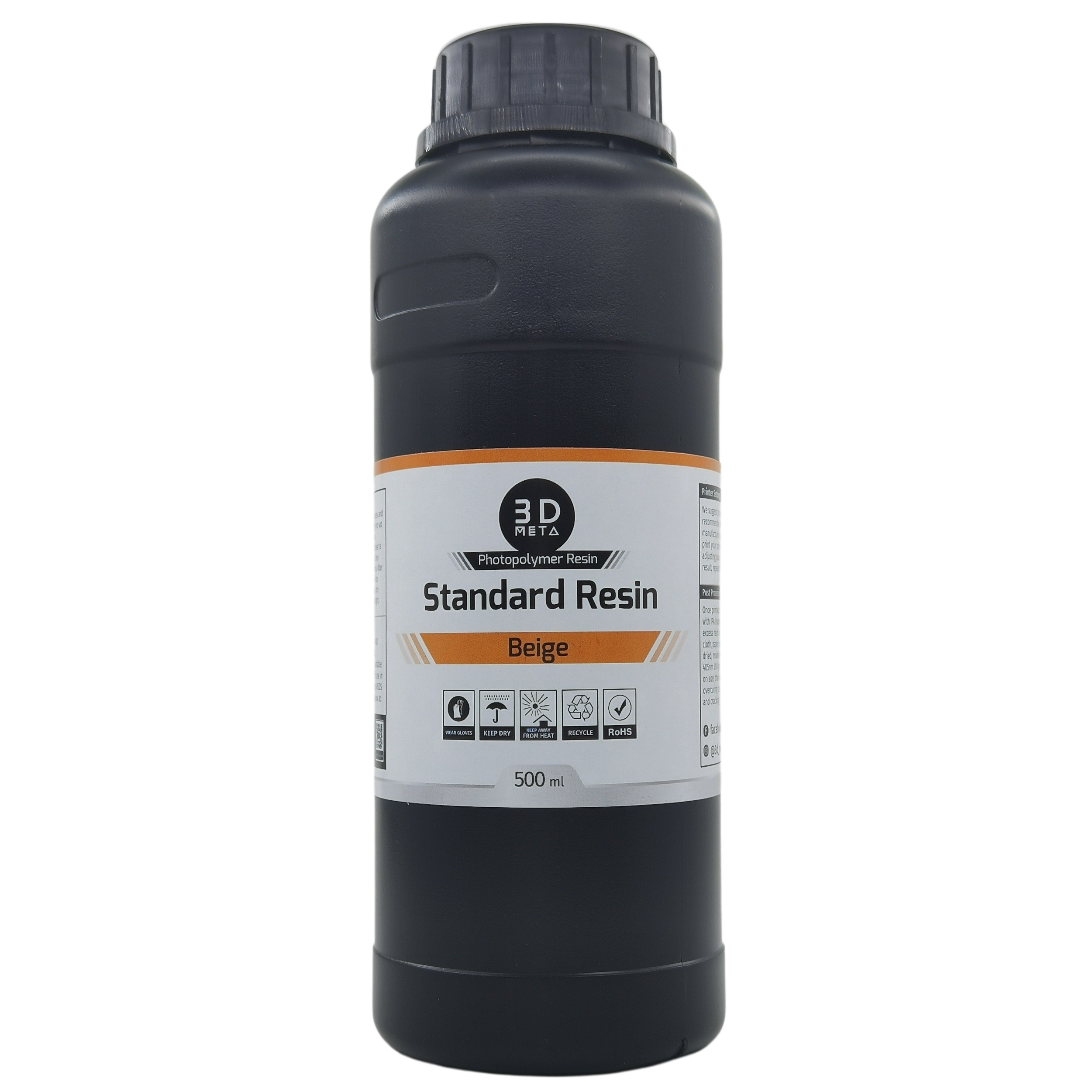

Colour: Beige
Price:
Sale price$27.95

Why Shop 3D META

  • Free Shipping - All orders over $149.
  • Quick Dispatch - Orders shipped out same or next day.
  • Quality Products - All stocked in Australia.
  • Safe and Secure Payments - Wide range of payment options.
  • Satisfaction Guaranteed - Free Returns within 14 days.
  • Knowledgeable Customer Service - Contact us with any questions.

Description

Compatible with most resin printers, 3D META’s standard resin range is the high quality, low odour, fast curing, easy printing resin you’ve been looking for.

Key Features:

Low Odour – No strong, nasty chemical smells filling your print room.

Wide Compatibility – Suitable for most resin printers available on the market.

Fast Curing – Decreases print times, increases productivity with no effect on print quality.

Low Shrinkage – Improves print accuracy.

Wide range of applications – Can be used for figurines, prototyping, functional parts etc.

 Technical Data:

Physical Properties

Testing Standard

Standard Resin

Density (g/ml)

ISO 1183

1.05 - 1.15

Viscosity (cps, 25℃)

Rotameter Viscometer

200 - 300cps

Molding Shrinkage

ISO 294

0.2-0.7%

Mechanical Properties





Tensile Strength (MPa)

ISO 527

40-45 MPa

Elongation at Break (%)

ISO 527

8-10%

Flexural Modulus (MPa)

ISO 178

2100-2200 MPa

Flexural Strength (MPa)

ISO 178

75-85MPa

Hardness (After curing) (D) ISO 868 82D
 Recommended Print Settings:

Resin Type

Standard Resin

Curing Wavelength (nm)

355 - 410nm (405nm recommended)

Layer Thickness (mm)

0.05mm

Exposure Time (s)

2-3s

Light Turn Off Time (s)

0.5s

Bottom Layer Exposure Time (s)

23-30s

Bottom Layer Quantity

4-6 layers

Anti-Aliasing Level

1

Z-Axis Lifting Distance (mm)

6mm

Z-Axis Lifting Speed (mm/s)

2-6mm/s

Z-Axis Retraction Speed (mm/s)

3-6mm/s

 *Print settings may require some adjusting for specific machines.

Directions: Shake well before use, always use gloves and mask when handling. Before pouring into vat inspect FEP sheet for any dents, deep scratches or holes and that the FEP sheet is clear (transparent), clean, and free of any debris. Do NOT fill vat past max fill line. After printing strain remaining resin back into bottle and tighten lid. Store in a cool, dry place until next use, avoid direct sunlight.

Post Processing: Once printed, models need to be washed with IPA (Isopropyl alcohol) to remove excess resin and dried with a lint-free cloth, paper towel or compressed air. Once dried, model needs to be cured under a 405nm UV light for 1-5 minutes depending on size, then rinsed off with water. Beware: overcuring can cause yellowing, brittleness and cracking.

Safety Information: KEEP OUT OF REACH OF CHILDREN AND ANIMALS. Avoid skin or eye contact, inhalation or ingestion. Resin not suitable as a food and drink container or for use in aquariums. Please refer to products MSDS for safety information, available below at info@3dmeta.com.au
