Description

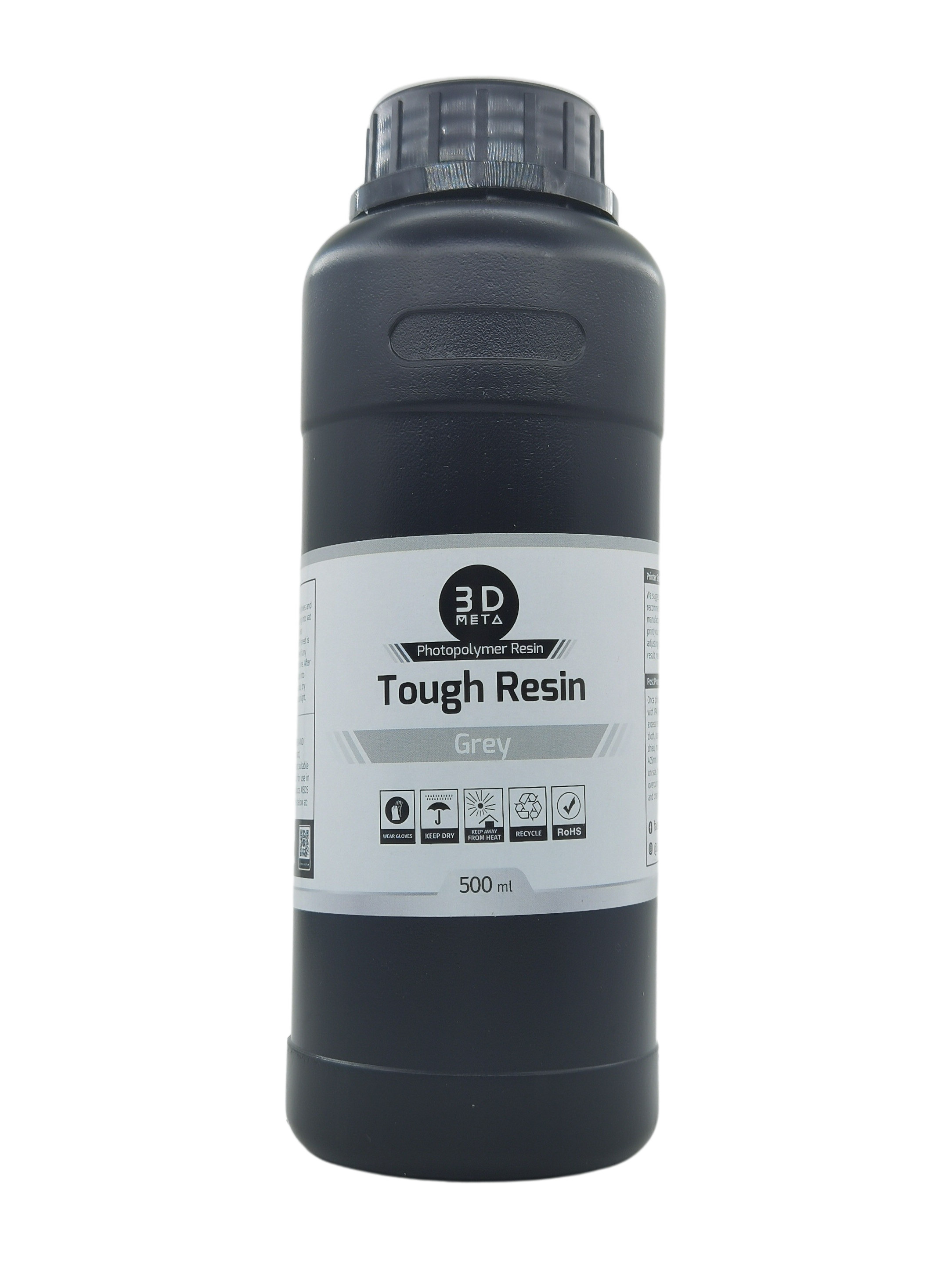

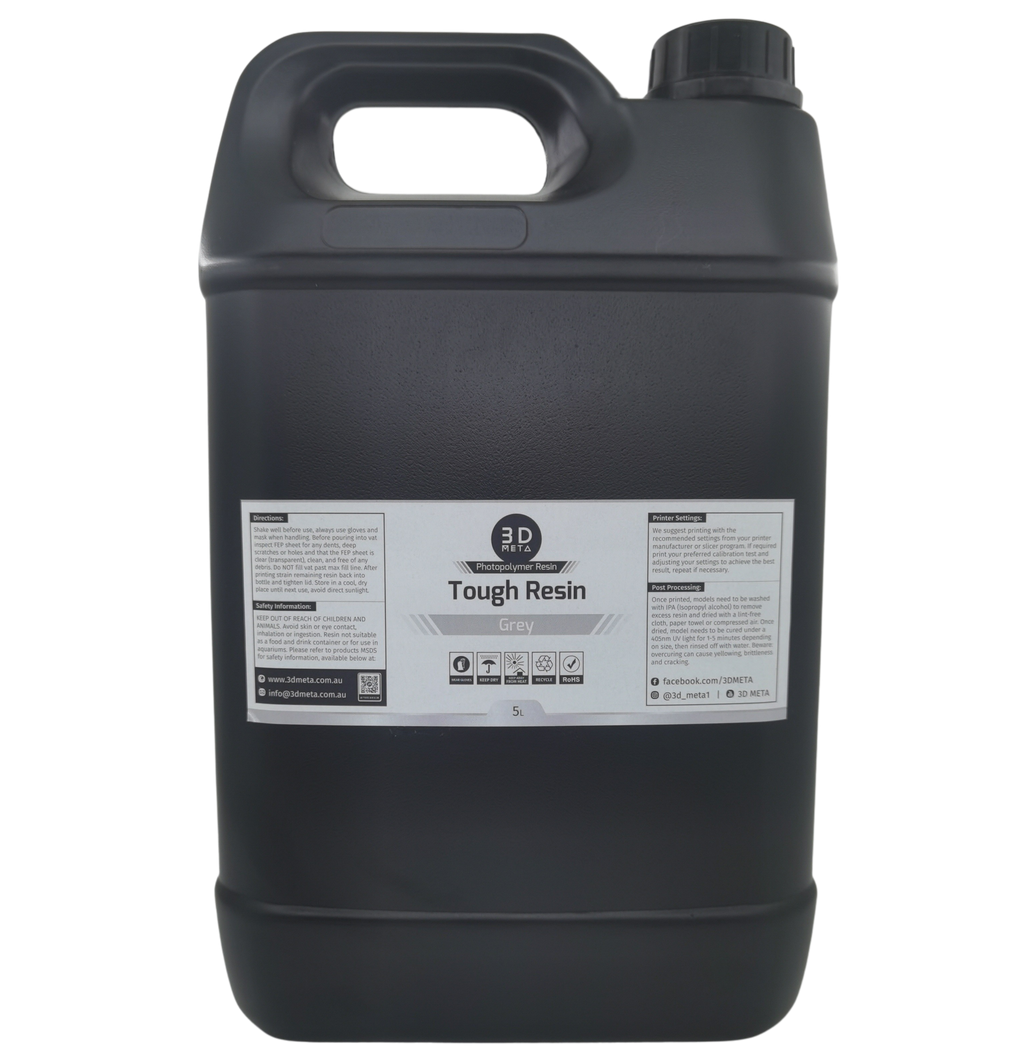

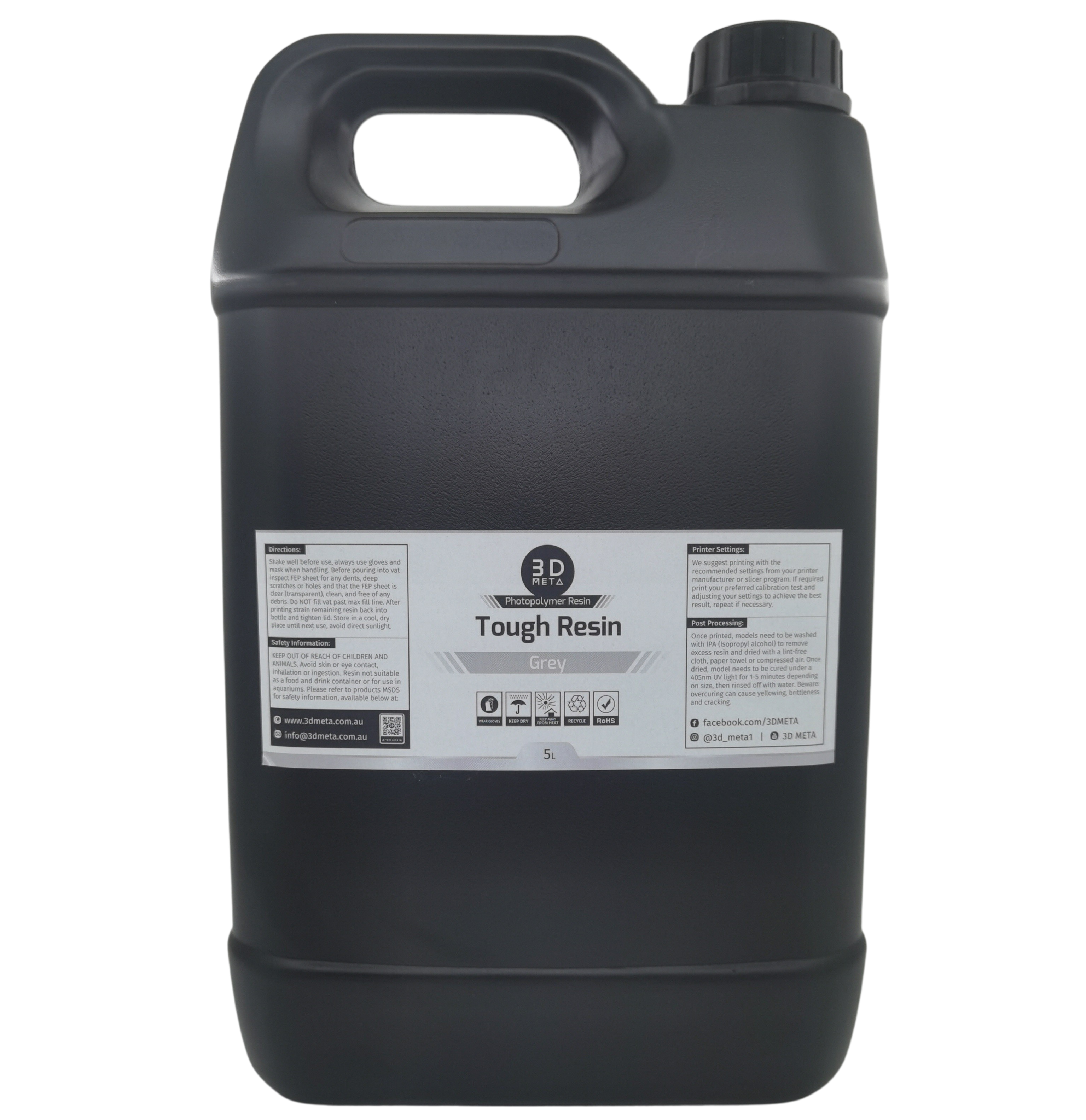

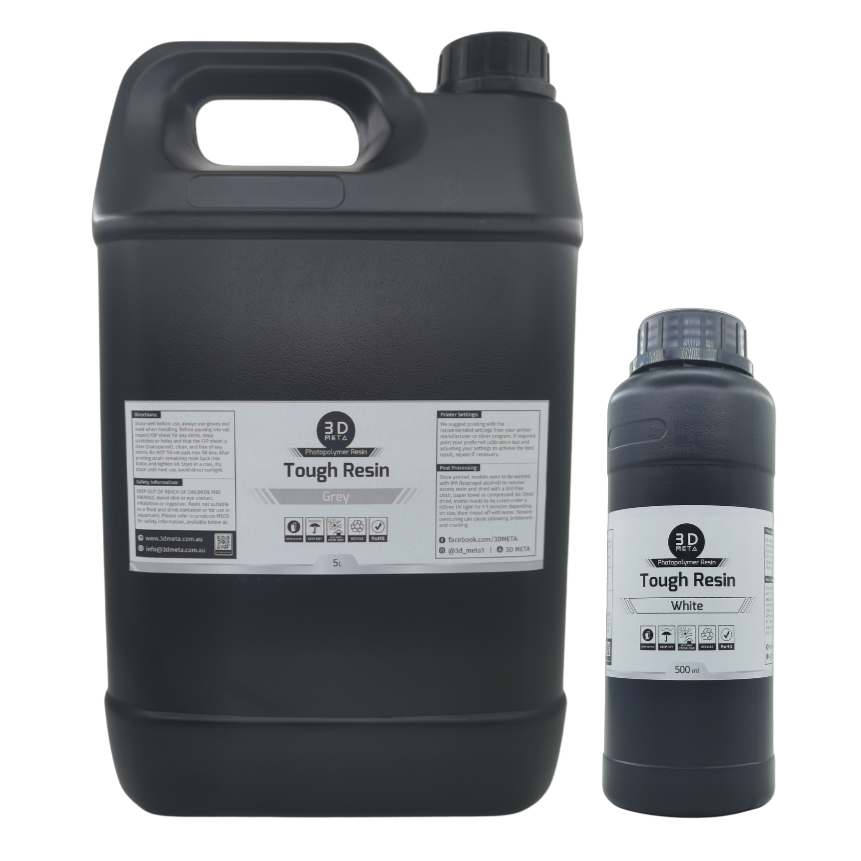

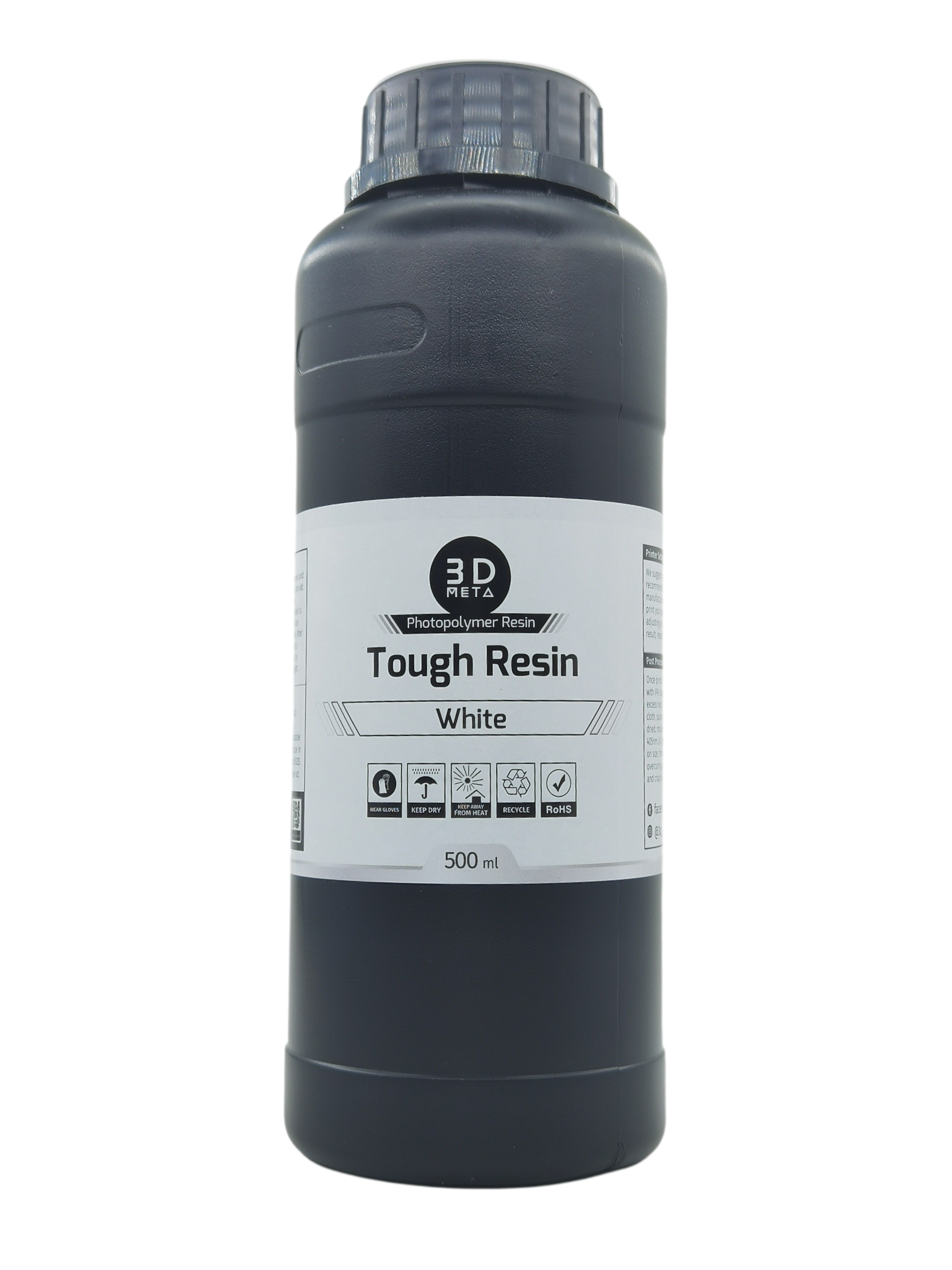

Compatible with most resin printers, 3D META’s tough resin range is the high quality, low odour, fast curing, easy printing resin you’ve been looking for.
Key Features:
Low Odour – No strong, nasty chemical smells filling your print room.
Wide Compatibility – Suitable for most resin printers available on the market.
Fast Curing – Decreases print times, increases productivity with no effect on print quality.
Low Shrinkage – Improves print accuracy.
Wide range of applications – Can be used for figurines, prototyping, functional parts etc.
Technical Data:
Physical Properties |
Testing Standard |
Tough Resin |
Density (g/ml) |
ISO 1183 |
1.05 - 1.15 |
Viscosity (cps, 25℃) |
Rotameter Viscometer |
300 - 400cps |
Molding Shrinkage |
ISO 294 |
0.2-0.5% |
Mechanical Properties |
|
|
Tensile Strength (MPa) |
ISO 527 |
40-45 MPa |
Elongation at Break (%) |
ISO 527 |
10-15% |
Flexural Modulus (MPa) |
ISO 178 |
2100-2200 MPa |
Flexural Strength (MPa) |
ISO 178 |
75-85MPa |
Hardness (After curing)(D) | ISO 868 | 82D |
Recommended Print Settings:
Resin Type |
Tough Resin |
Curing Wavelength (nm) |
355-410nm (405nm recommended) |
Layer Thickness (mm) |
0.05mm |
Exposure Time (s) |
2-3s |
Light Turn Off Time (s) |
0.5s |
Bottom Layer Exposure Time (s) |
23-30s |
Bottom Layer Quantity |
4-6 layers |
Anti-Aliasing Level |
1 |
Z-Axis Lifting Distance (mm) |
6mm |
Z-Axis Lifting Speed (mm/s) |
2-6mm/s |
Z-Axis Retraction Speed (mm/s) |
3-6mm/s |
*Print settings may require some adjusting for specific machines.
Directions: Shake well before use, always use gloves and mask when handling. Before pouring into vat inspect FEP sheet for any dents, deep scratches or holes and that the FEP sheet is clear (transparent), clean, and free of any debris. Do NOT fill vat past max fill line. After printing strain remaining resin back into bottle and tighten lid. Store in a cool, dry place until next use, avoid direct sunlight.
Post Processing: Once printed, models need to be washed with IPA (Isopropyl alcohol) to remove excess resin and dried with a lint-free cloth, paper towel or compressed air. Once dried, model needs to be cured under a 405nm UV light for 1-5 minutes depending on size, then rinsed off with water. Beware: overcuring can cause yellowing, brittleness and cracking.
Safety Information: KEEP OUT OF REACH OF CHILDREN AND ANIMALS. Avoid skin or eye contact, inhalation or ingestion. Resin not suitable as a food and drink container or for use in aquariums. Please refer to products MSDS for safety information, available below at info@3dmeta.com.au
