Description

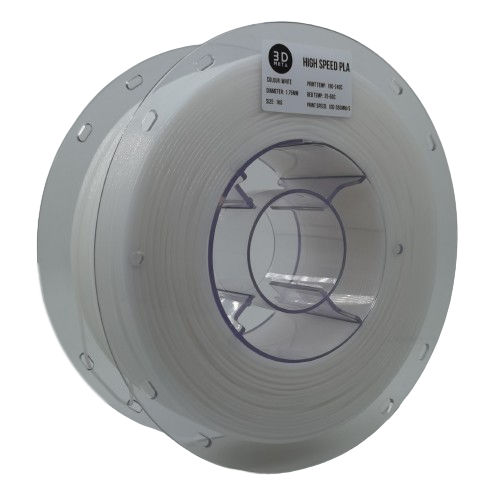

3D META’s High Speed PLA 3D printing filament is produced with high quality, specially modified toughened polylactic acid (PLA) material. Designed with the added benefit of high fluidity, rapid cooling and solidification characteristics making it perfect for high speed printing. Our High Speed PLA filament retains the same high strength and exceptional bed and layer adhesion as our PLA+ filament. While suitable for most FDM printers, High Speed PLA is specifically designed for high speed printers. Like all of our PLA filaments High Speed PLA does not warp or crack, has excellent dimensional stability and is manufactured under strict QA standards. Other features of 3D META’s High Speed filament also includes being 100% biodegradable as well as being FDA food safety approved. All up this gives users a high speed, easy to print, consistent and reliable, high quality filament that you can use with confidence.
Key Features:
- Manufactured with high quality materials.
- High Speed capabilities - 350mm/s
- Retains same strength properties as PLA+.
- Designed for high speed printers, AMS suitable.
- Exceptional bed and layer adhesion.
- No warping or cracking.
- 100% Biodegradable.
- FDA food safety approved.
- Manufactured under strict QA procedures.
- Consistent, reliable, easy to print with filament.
High Speed PLA Printing Parameters:
Nozzle Temperature |
190℃ - 240℃ |
Bed Temperature |
25℃ - 60℃ |
Print Surface |
Most print surfaces ie. Glass, Meta Flex etc |
Model Cooling Fan |
50% - 100% |
Layer |
0.12mm - 0.3mm |
Printing Speed |
100mm/s - 350mm/s |
Idle Speed |
150mm/s - 600mm/s |
Retraction Distance |
1mm - 2mm |
Retraction Speed |
30mm/s - 50mm/s |
Supporting Materials |
Itself, PVA |
High Speed PLA Technical Specifications:
Physical Properties |
Test |
|
Density |
ISO 1183 |
1.25g/cm3 - 1.26g/cm3 |
MFR (250℃/2.16Kg) |
ISO 1133 |
10g/10min - 20g/10min |
Moisture Absorption (23℃/24h) |
ISO 62 |
<0.3% |
Mechanical Properties |
||
Tensile Strength (X-Y) Tensile Strength (X-Z) |
ISO 527 |
45.5Mpa - 49Mpa 35Mpa - 40Mpa |
Elongation at Break (X-Y) Elongation at Break (X-Z) |
ISO 527 |
10.5% - 15.5% 5% - 8% |
Flexural Modulus (X-Y) Flexural Modulus (X-Z) |
ISO 527 |
2000Mpa - 2100Mpa 1950Mpa - 2050Mpa |
Flexural Strength (X-Y) |
ISO178 |
70Mpa - 80Mpa |
Impact Strength (X-Y) |
ISO180 |
4.5 - 5 KJ/m2 |
Thermodynamic Properties |
||
HDT@ 0.455MPa (66 psi) |
ISO75 |
53℃ |
Continuous Use Temperature |
IEC 60216 |
50℃ |
Weights and Dimensions |
||
Spool Dimensions |
Outside Diameter: 200mm Width: 65mm Internal Hub Diameter: 52mm |
|
Spool Weight (without filament) |
150g |
|
Spool Weight (with filament) |
1.15kg |
|
Package Dimensions (LxWxH) |
210mm x 210mm x 75mm |
|
Package Weight |
1.3kg |
Applications:
Due to its overall strength, easy printability and wide range of colours, High Speed PLA can be used for a range of applications. Most commonly PLA products are used for decorative / ornamental pieces, cosplay, and product prototyping. With it’s added strength PLA+ can also be suitable for some functional parts, printer upgrades etc.
One downside to PLA/PLA+ filaments are that they have low UV resistant, meaning that if your printed piece is going to be outside it will weaken and fade overtime due to UV exposure. Good filaments for outdoor use are PETG and ASA.
Storage and Drying:
To prevent moisture absorption, it is recommended to keep your filament in a cool, dark, dry area, preferable sealed in an airtight bag.
Filament can be dried with various methods including a dedicated filament drying machine, food dehydrator, oven, or even your printer if it’s fully enclosed. For PLA and PLA+ filaments we recommend a drying temperature of 40℃ - 45℃ for a minimum of 4 – 6 hours.
Why choose 3D META 3D printing filaments?
High quality materials – All 3D META filaments are made for high quality materials.
Strict manufacturing procedures and QA standards – All 3D META filaments are produced, checked, and tested to the highest standards. Ensuring filament is consistent and reliable roll after roll.
Tried and tested – All 3D META filaments are tried and tested inhouse before release, giving you the confidence that new filament we release or a filament you haven’t tried before will work as it should.
Committed to growth – At 3D META we are committed to growing and expanding our range of filaments, be it with new materials or exciting new colours, we are always listening to our customers and trying new combinations.
