Description
Description:

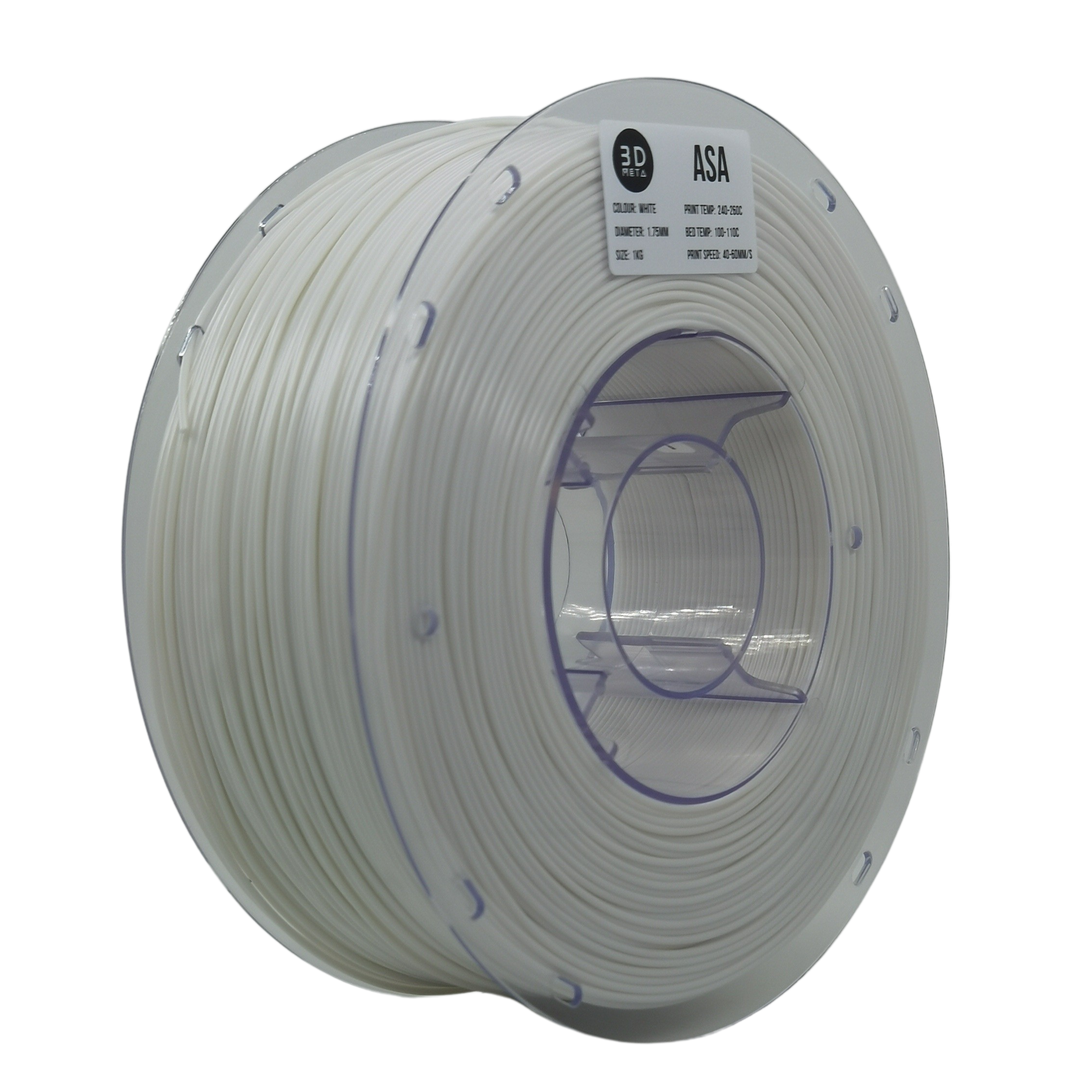

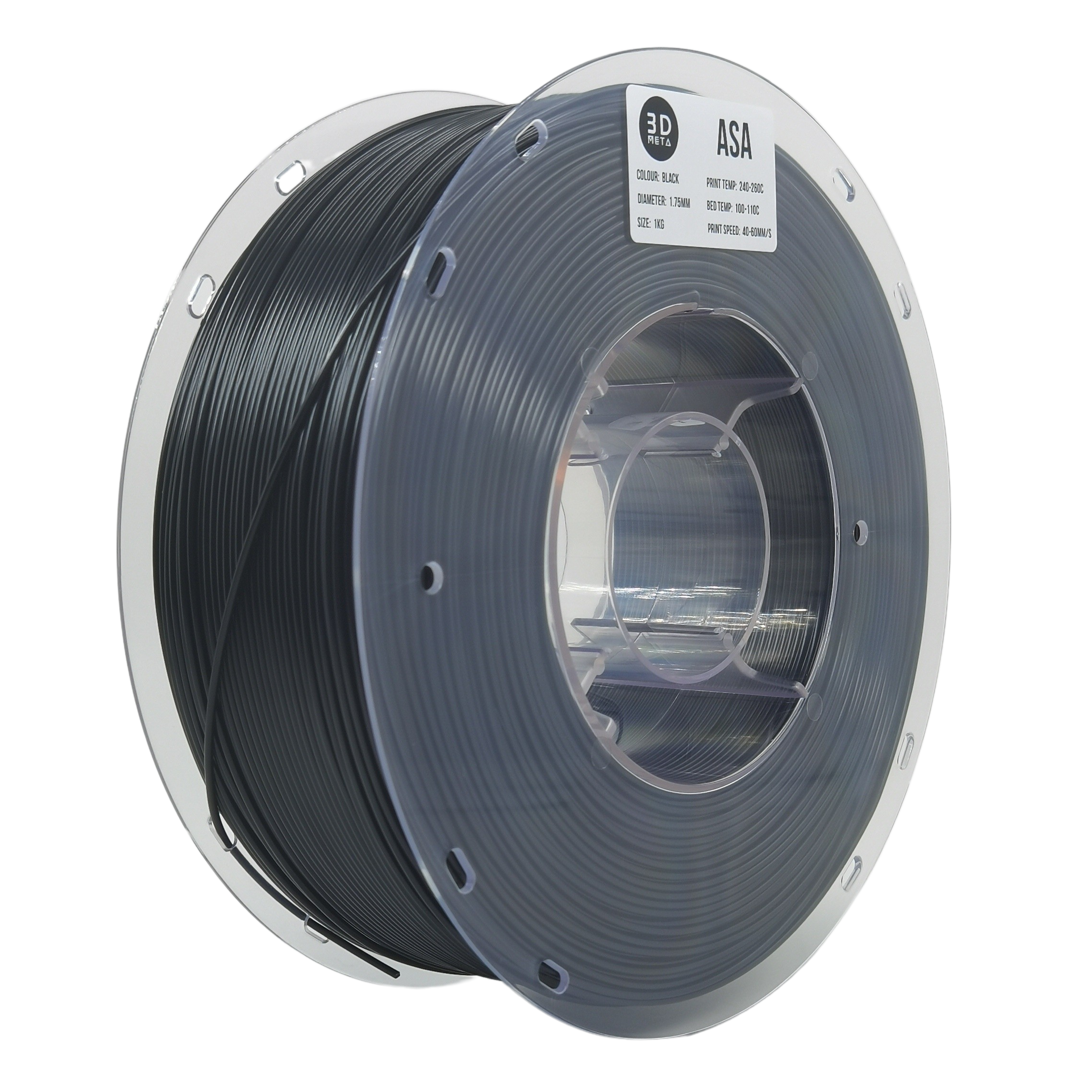

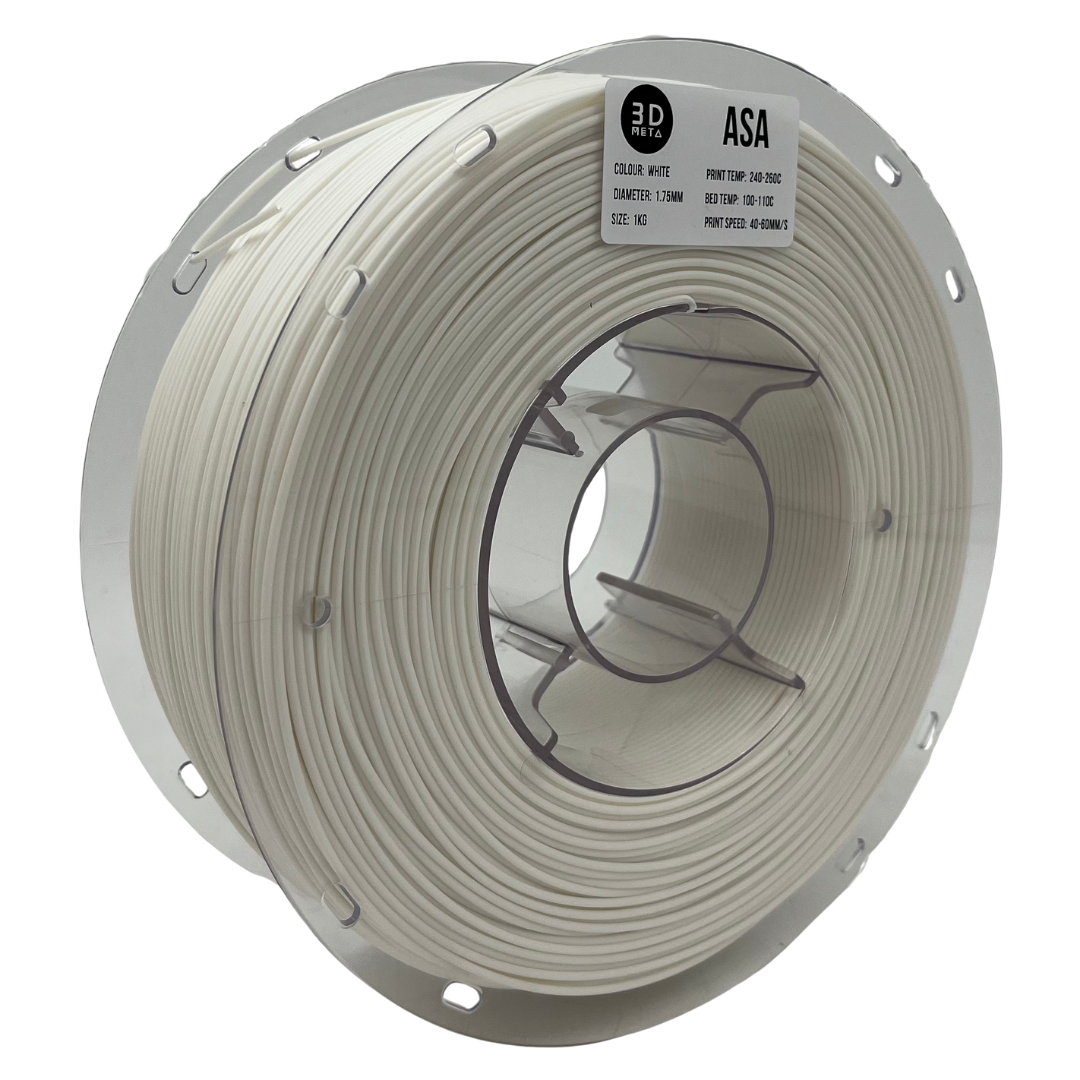

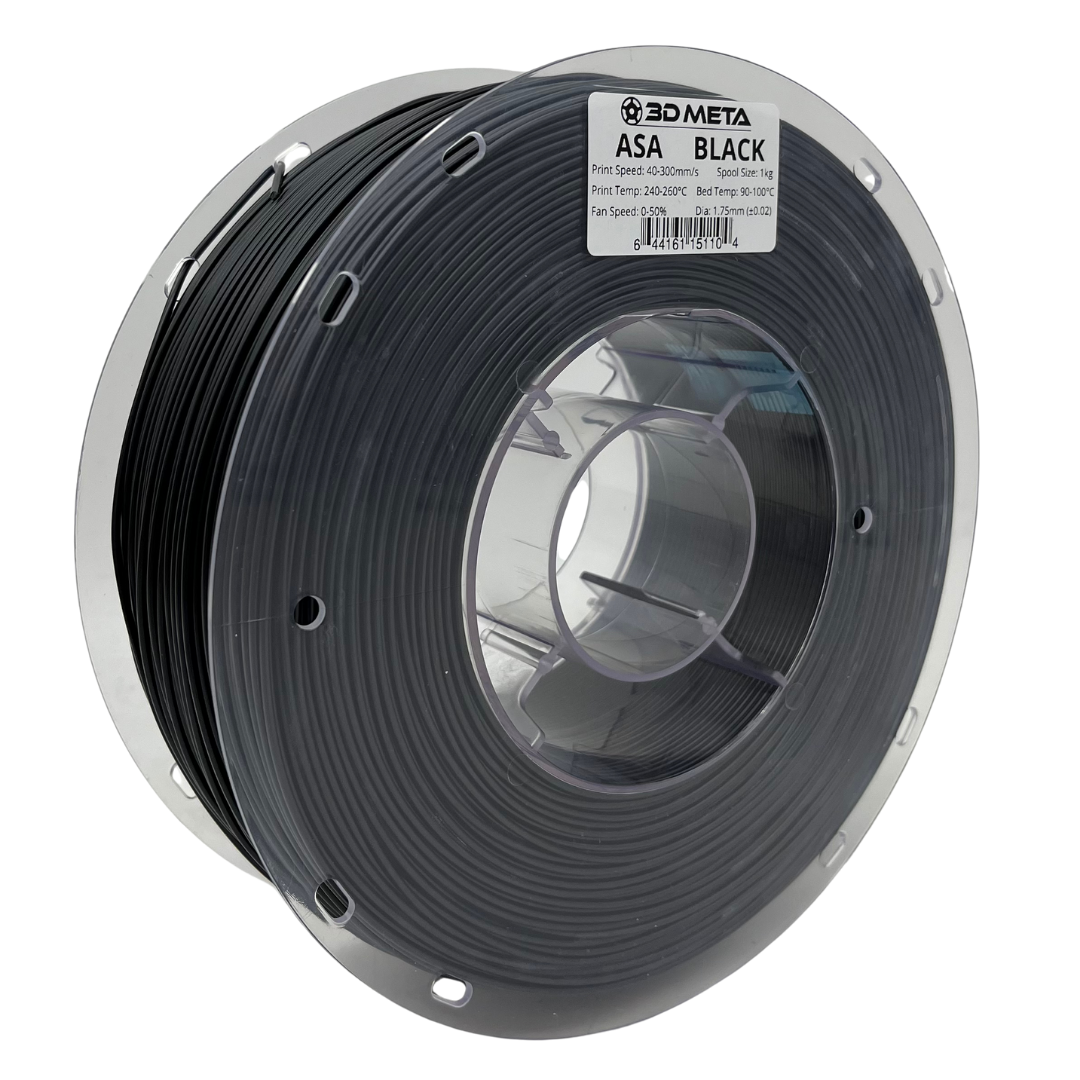

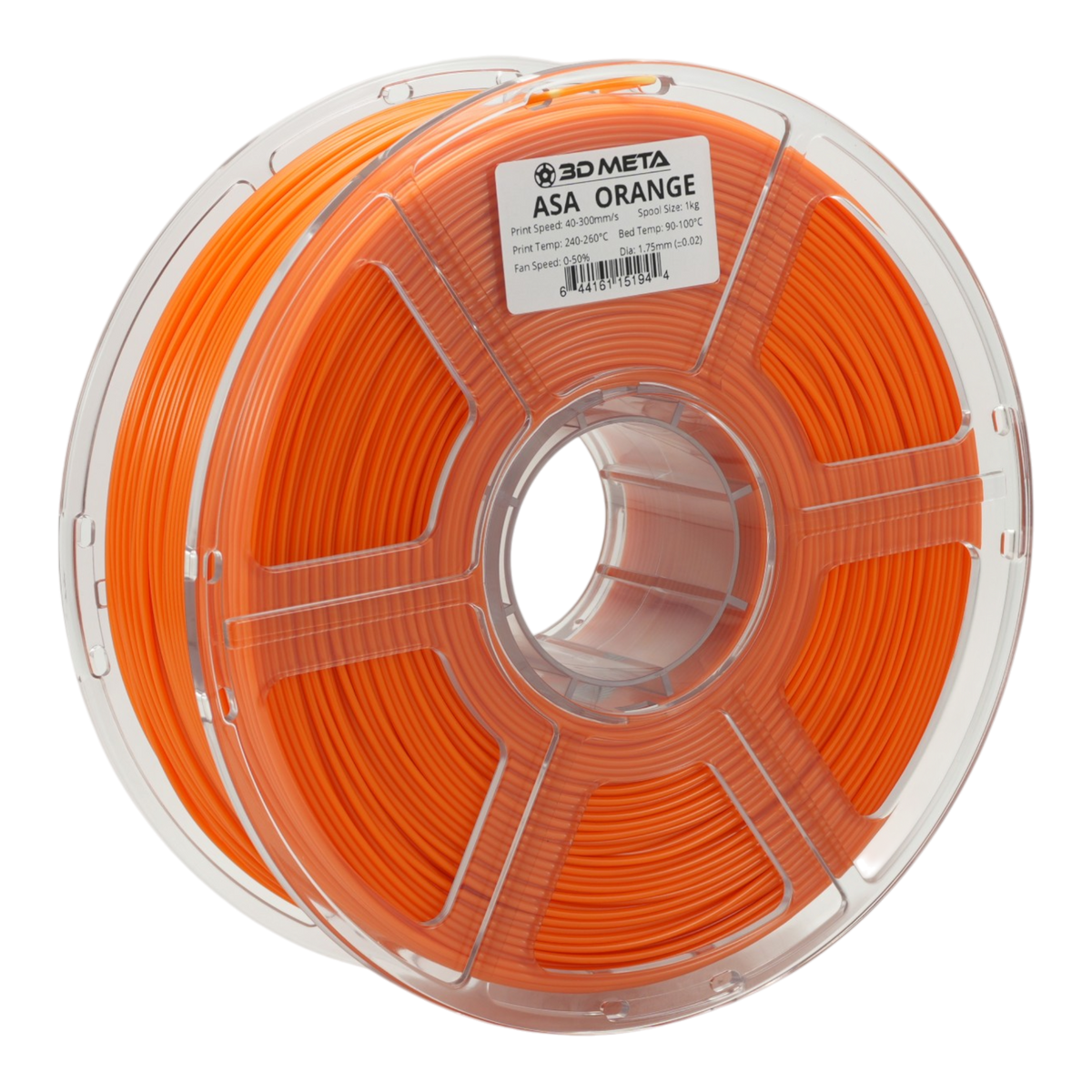

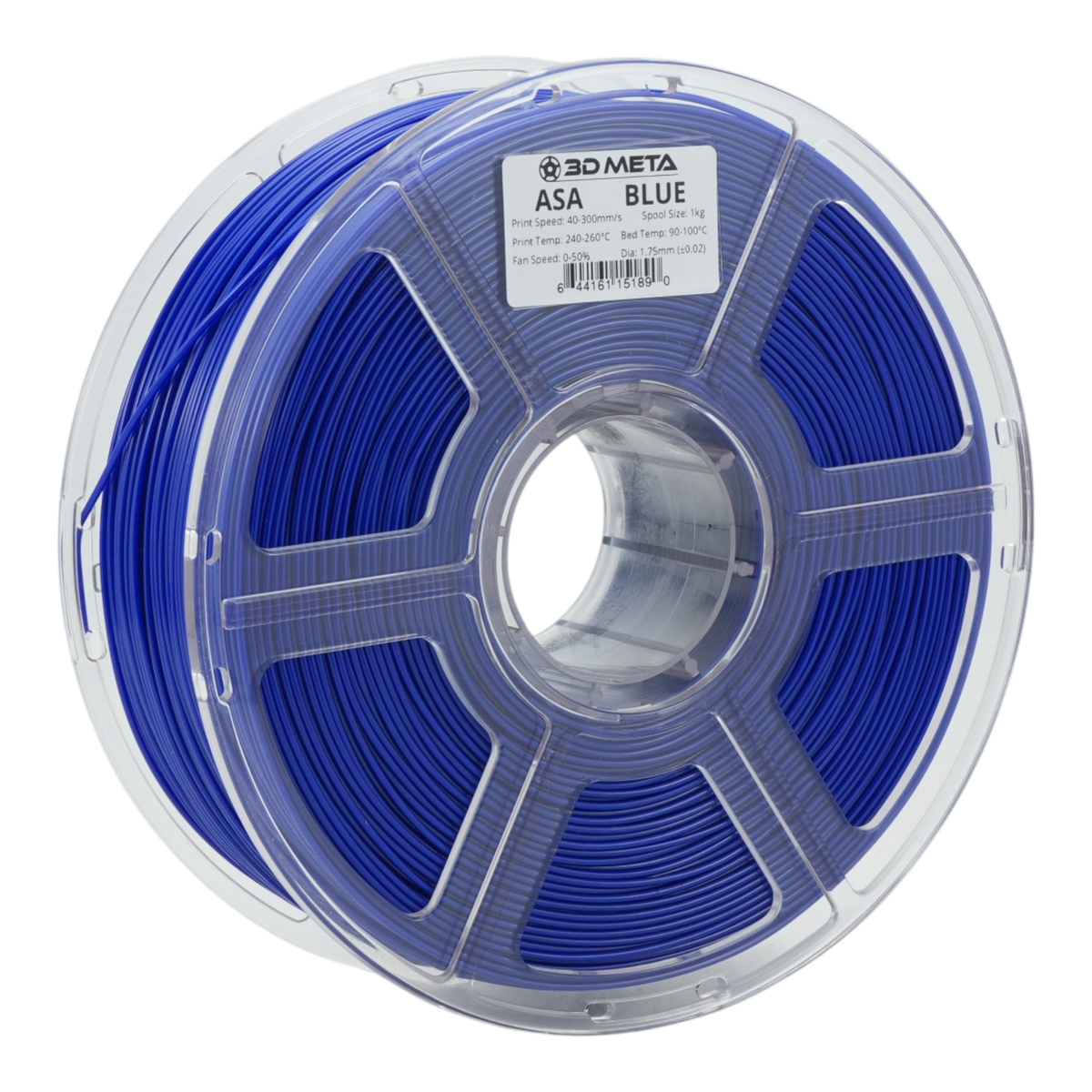

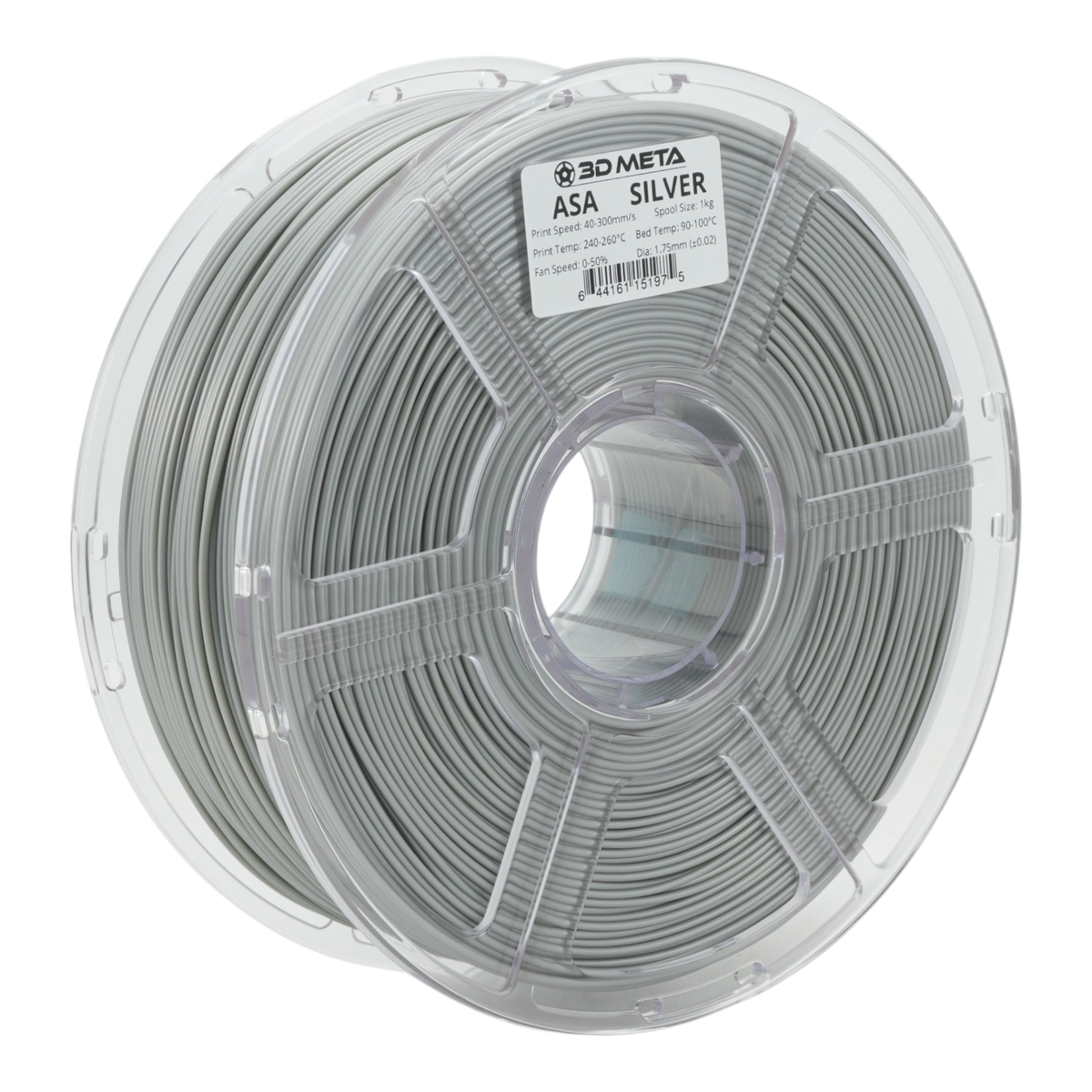

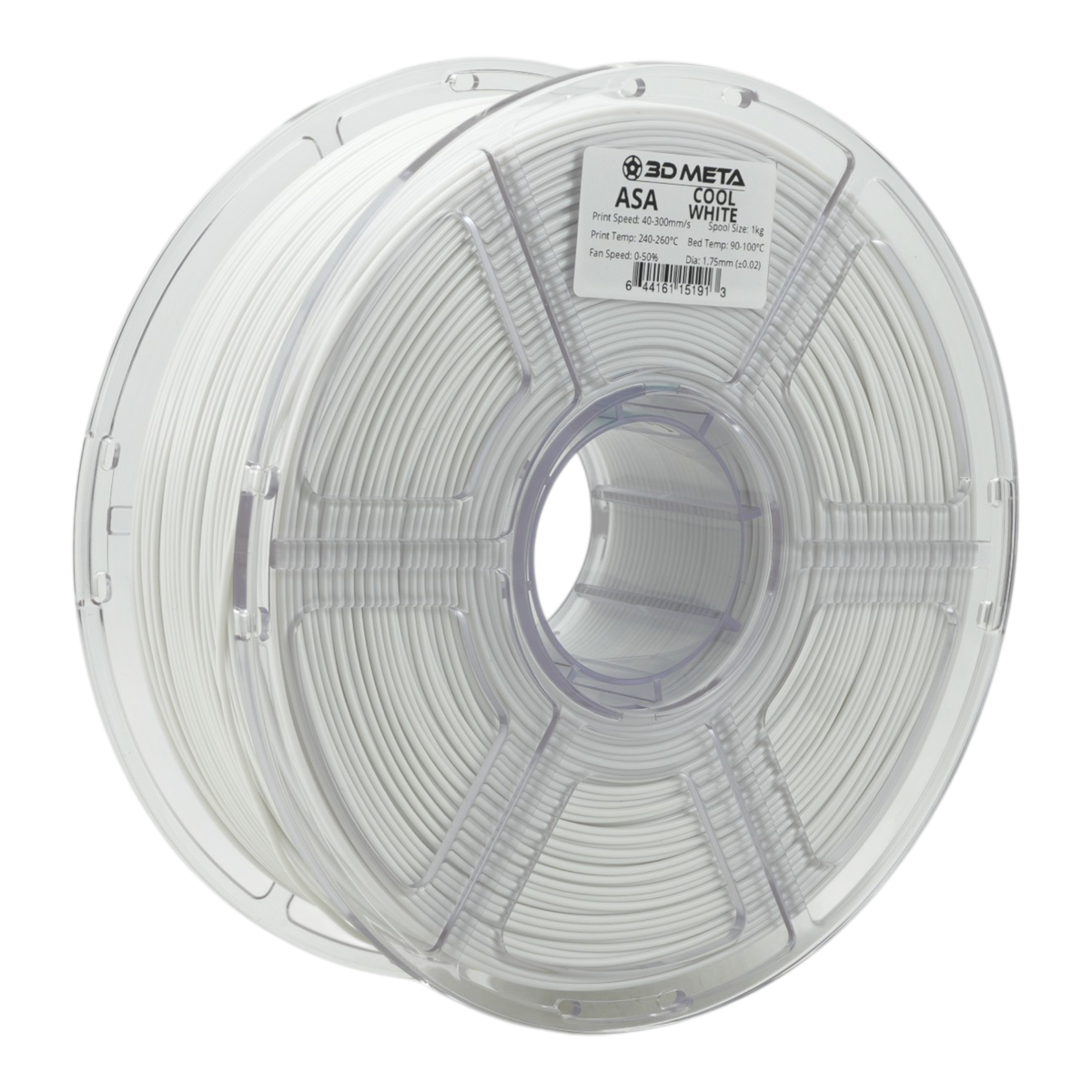

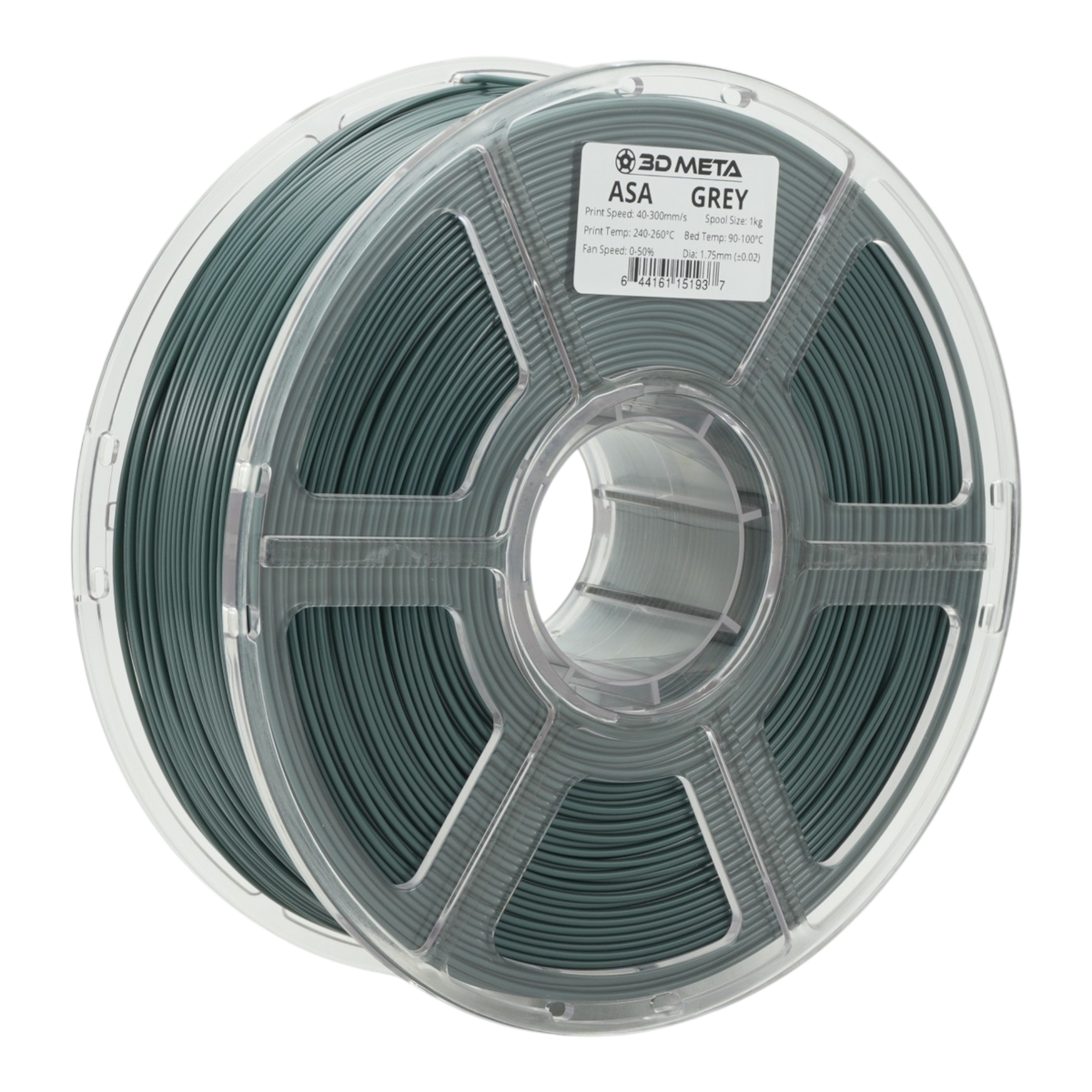

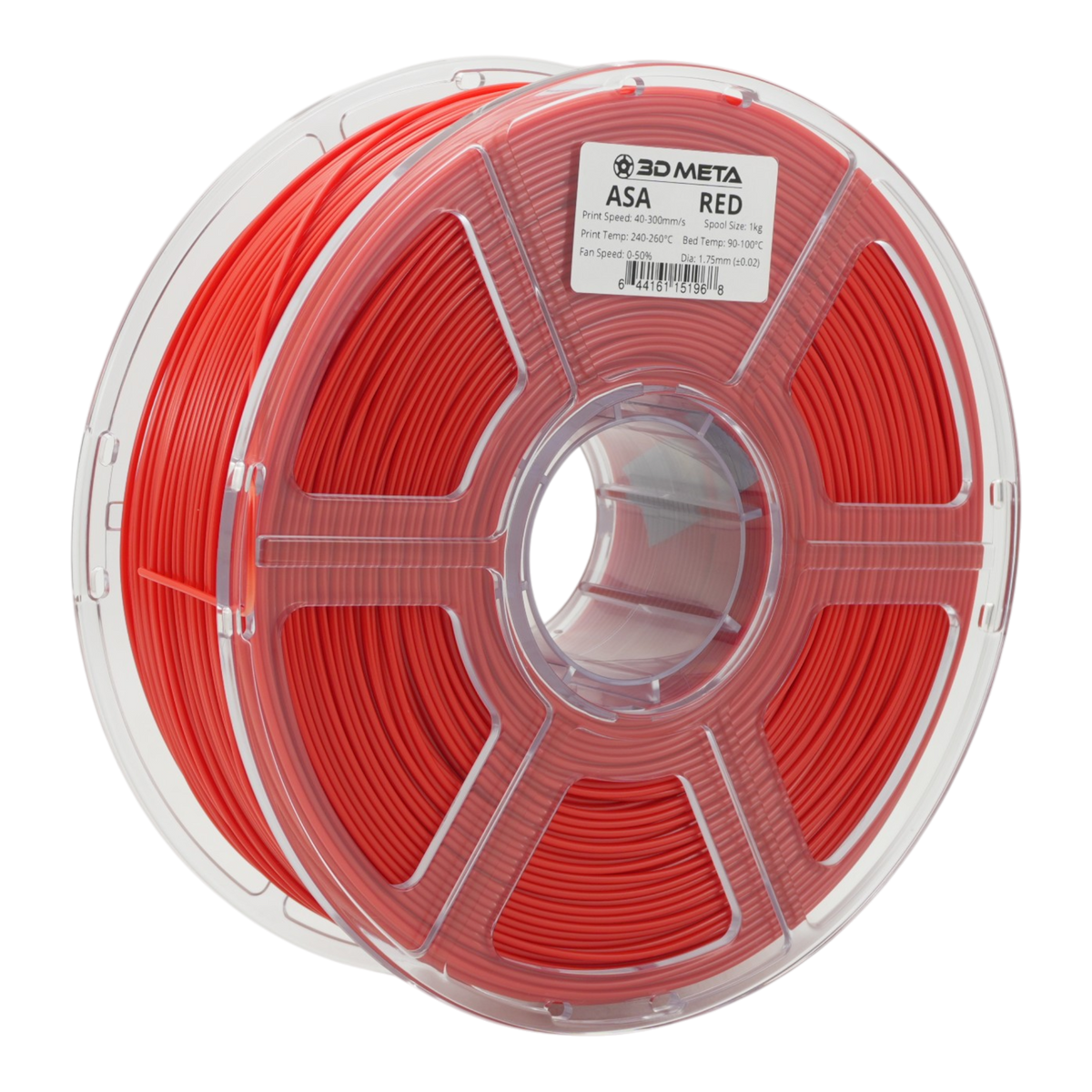

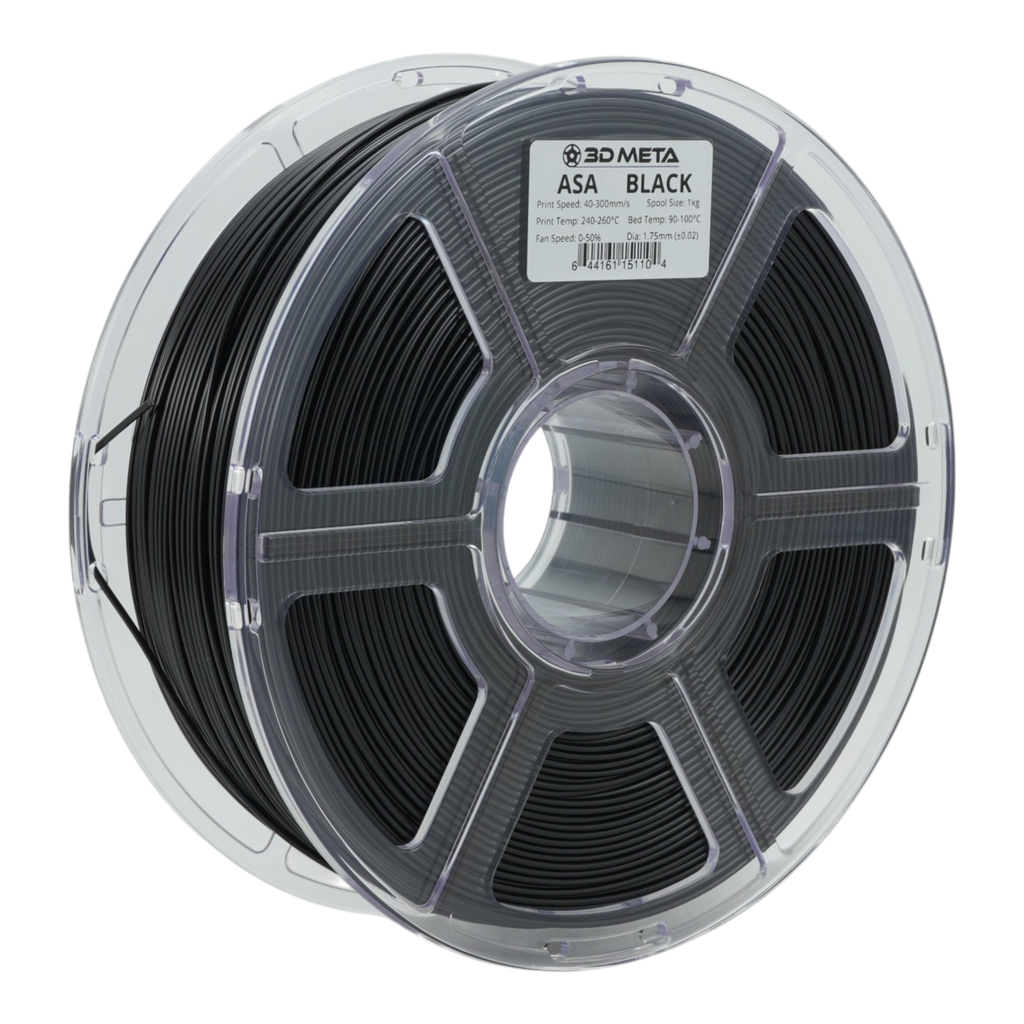

3D META’s ASA 3D printing filament is produced with high quality, acrylonitrile styrene acrylate (ASA) engineering plastic. Our ASA filament is tough, has high impact resistance is temperature and weather resistant and has antistatic properties. Our ASA filament is suitable for most 3D printers.
Key Features:
- Manufactured with high quality materials.
- Strong with high impact resistance.
- Temperature and weather resistant.
- Antistatic properties
- Exceptional bed and layer adhesion.
- Manufactured under strict QA procedures.
- Consistent and reliable filament.
ASA Printing Parameters:
Nozzle Temperature |
240℃ - 260℃ |
Bed Temperature |
100℃ - 120℃ |
Print Surface |
Most print surfaces ie. Glass, Meta Flex etc |
Model Cooling Fan |
0% - 50% |
Layer |
0.12mm - 0.3mm |
Printing Speed |
40mm/s - 60mm/s |
Idle Speed |
60mm/s - 120mm/s |
Retraction Distance |
1mm - 3mm |
Retraction Speed |
30mm/s - 50mm/s |
Supporting Materials |
Itself, HIPS |
ASA Technical Specifications:
Physical Properties |
Test |
|
Density |
ISO 1183 |
1.08g/cm3 - 1.09g/cm3 |
MFR (250℃/2.16Kg) |
ISO 1133 |
20g/10min - 25g/10min |
Moisture Absorption (23℃/24h) |
ISO 62 |
1% |
Mechanical Properties | ||
Tensile Strength |
ISO 527 |
42Mpa - 45Mpa |
Elongation at Break |
ISO 527 |
9% - 12% |
Flexural Modulus |
ISO 527 |
1200Mpa - 1400Mpa |
Flexural Strength |
ISO178 |
75Mpa - 79Mpa |
Impact Strength |
ISO180 |
19 KJ/m2 – 20KJ/m2 |
Thermodynamic Properties | ||
HDT@ 0.455MPa (66 psi) |
ISO75 |
88℃ |
Weights and Dimensions | ||
Spool Dimensions |
Outside Diameter: 200mm Width: 65mm Internal Hub Diameter: 52mm |
|
Spool Weight (without filament) |
150g |
|
Spool Weight (with filament) |
1.15kg |
|
Package Dimensions (LxWxH) |
210mm x 210mm x 75mm |
|
Package Weight |
1.3kg |
|
Applications:
Due to its overall strength and high impact resistance, temperature and weather resistance and antistatic properties, ASA can be used for a range of engineering applications. It’s most commonly used for prototyping or function parts that require high strength, impact resistance, or need to withstand certain temperature and weather conditions.
Storage and Drying:
To prevent moisture absorption, it is recommended to keep your filament in a cool, dark, dry area, preferable sealed in an airtight bag.
Filament can be dried with various methods including a dedicated filament drying machine, food dehydrator, oven, or even your printer if it’s fully enclosed. For ABS and ABS+ filaments we recommend a drying temperature of 80℃ for a minimum of 5 hours.
Why choose 3D META 3D printing filaments?
High quality materials – All 3D META filaments are made for high quality materials.
Strict manufacturing procedures and QA standards – All 3D META filaments are produced, checked, and tested to the highest standards. Ensuring filament is consistent and reliable roll after roll.
Tried and tested – All 3D META filaments are tried and tested inhouse before release, giving you the confidence that new filament we release or a filament you haven’t tried before will work as it should.
Committed to growth – At 3D META we are committed to growing and expanding our range of filaments, be it with new materials or exciting new colours, we are always listening to our customers and trying new combinations.
