Description:

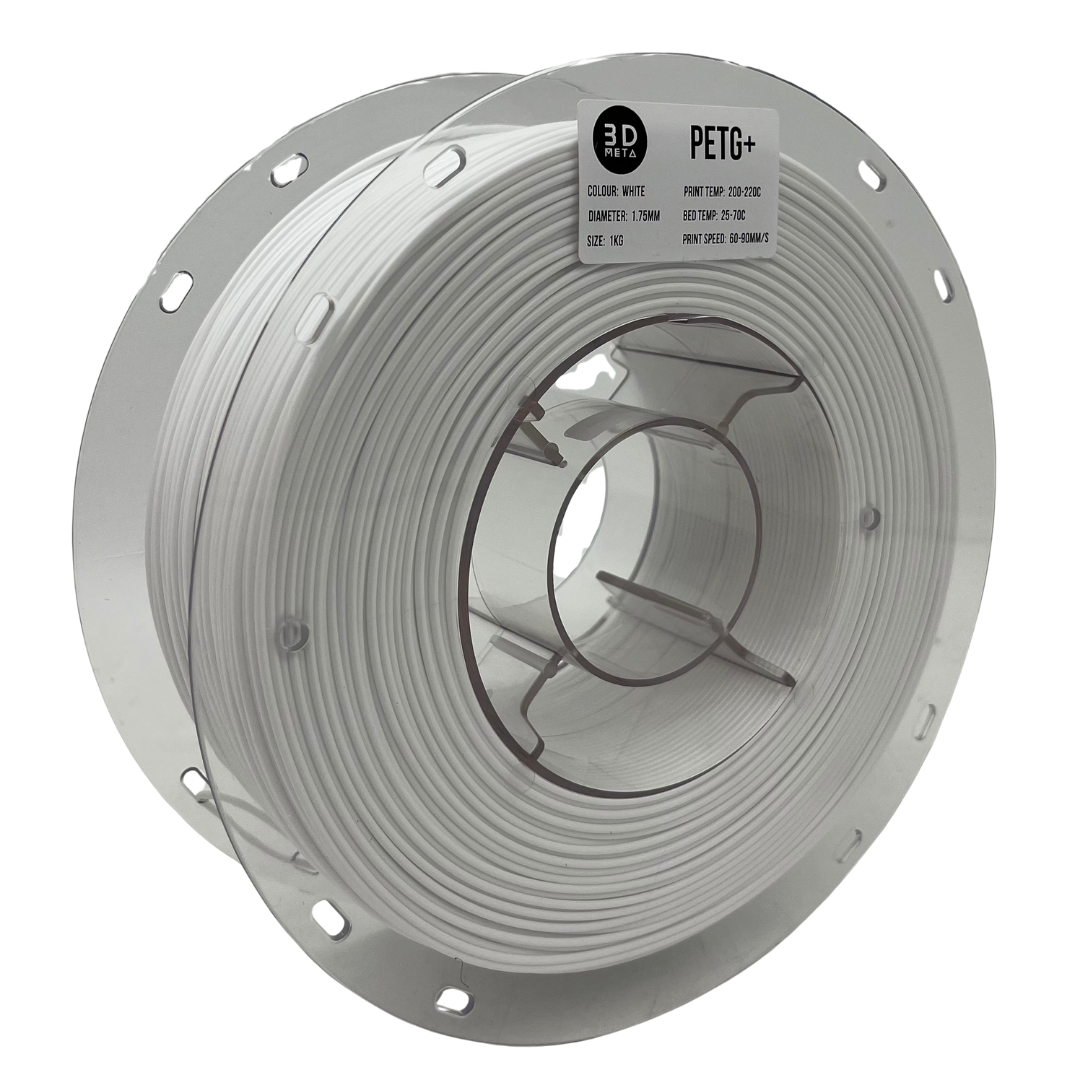

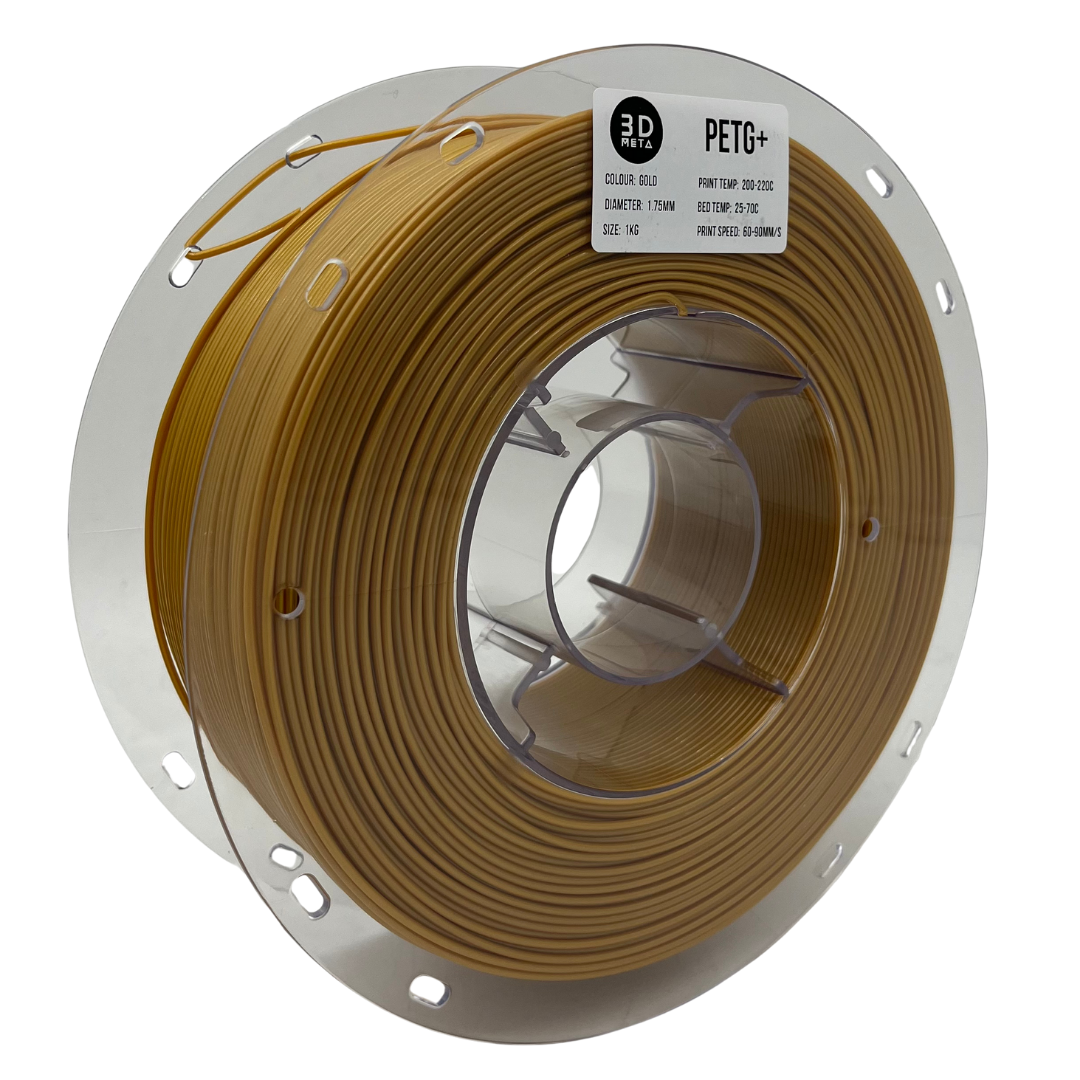

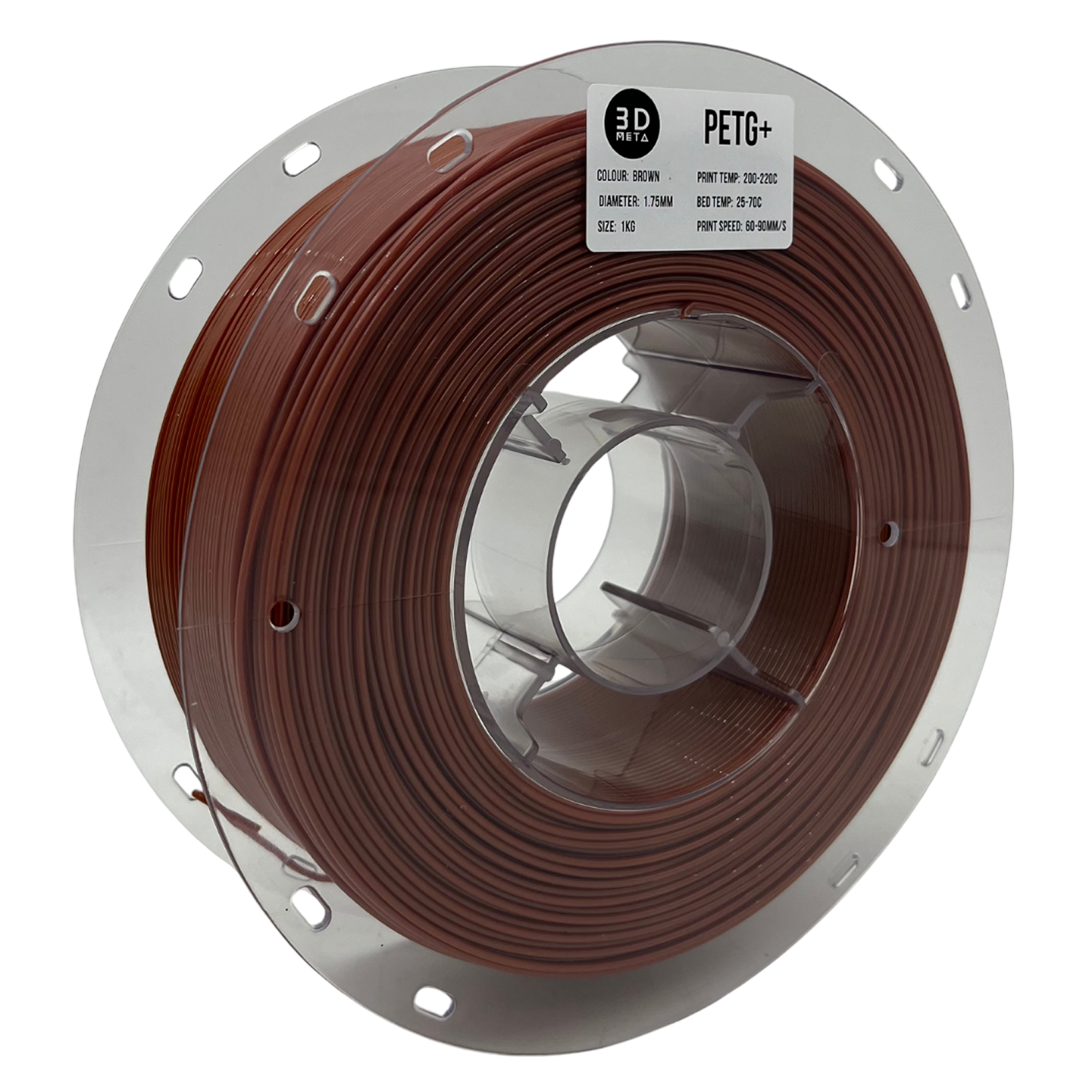

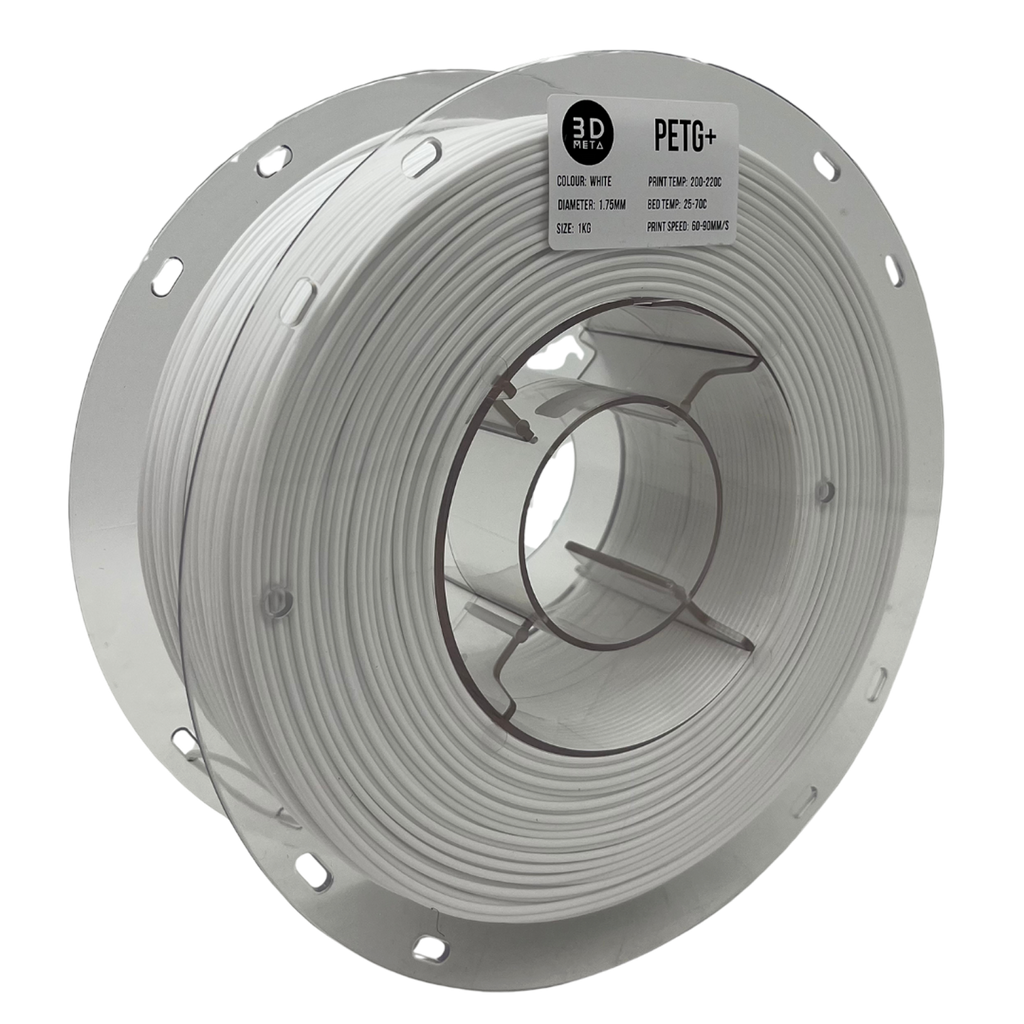

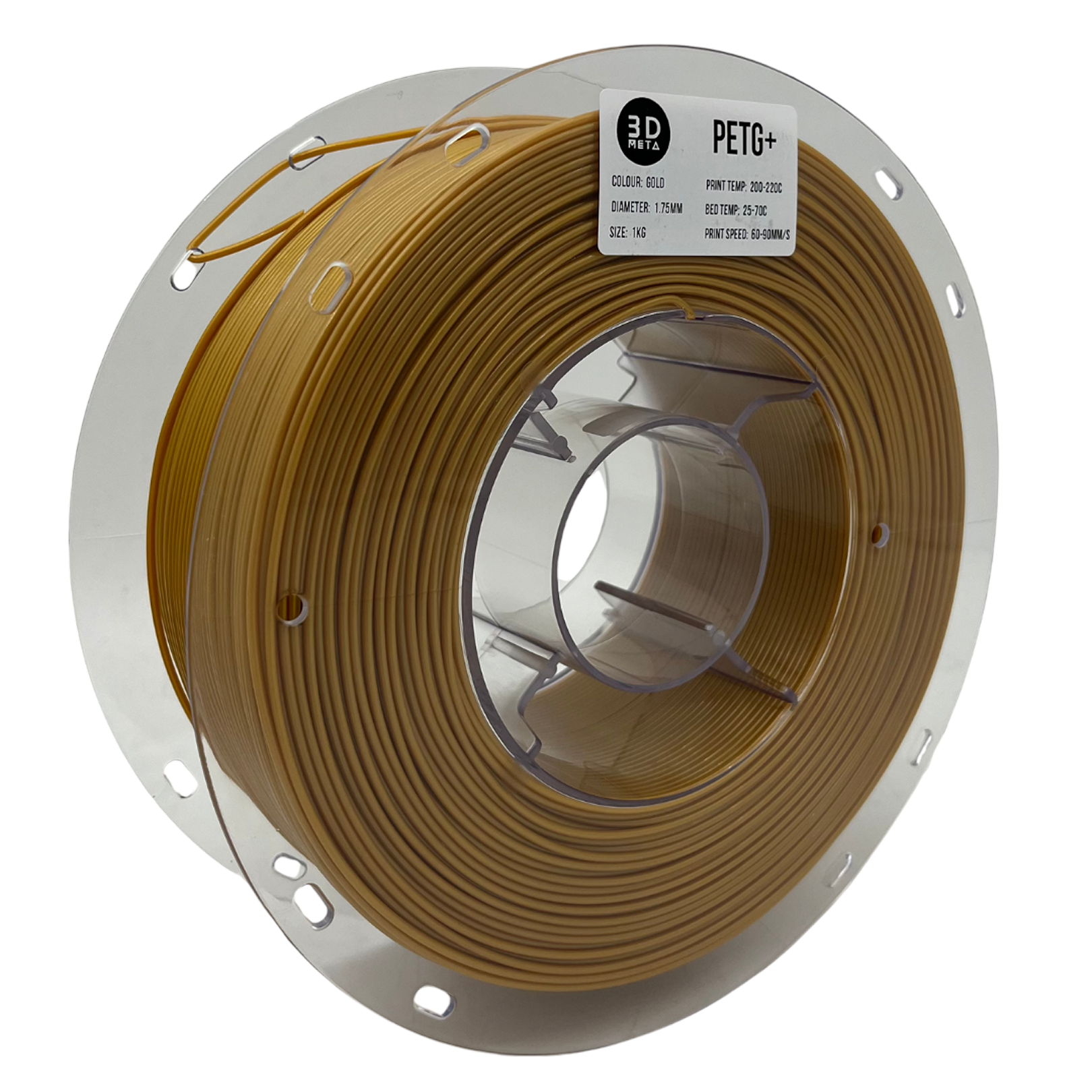

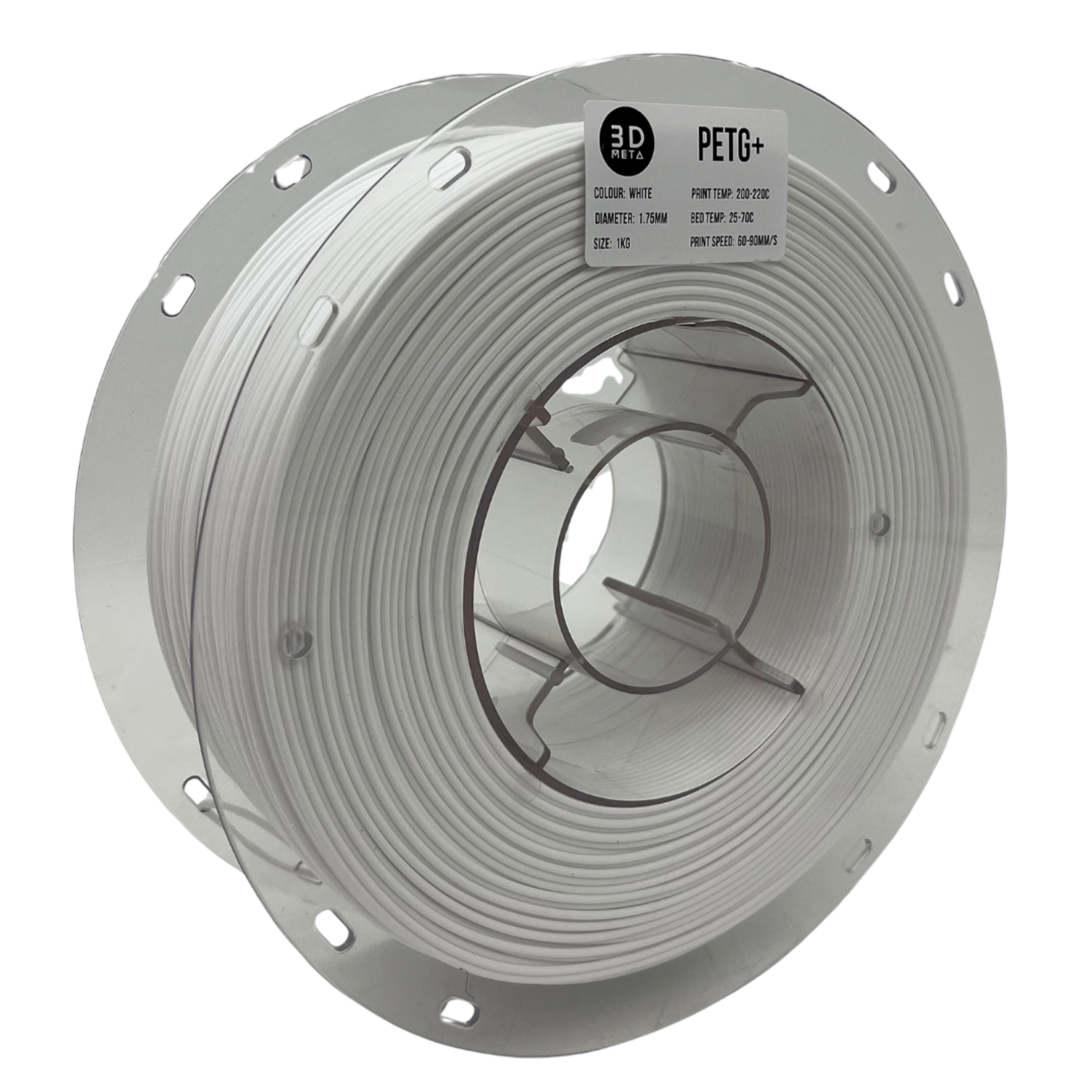

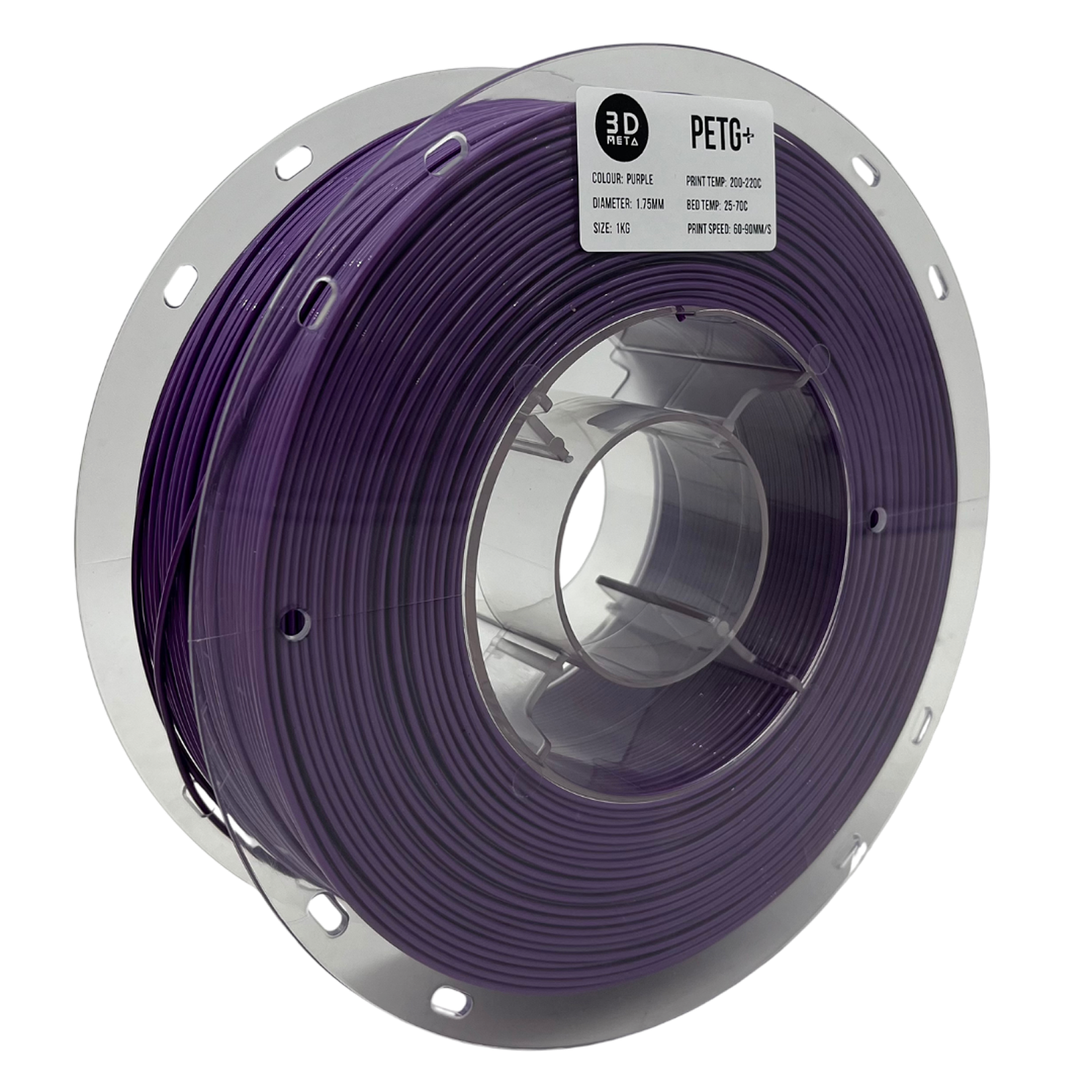

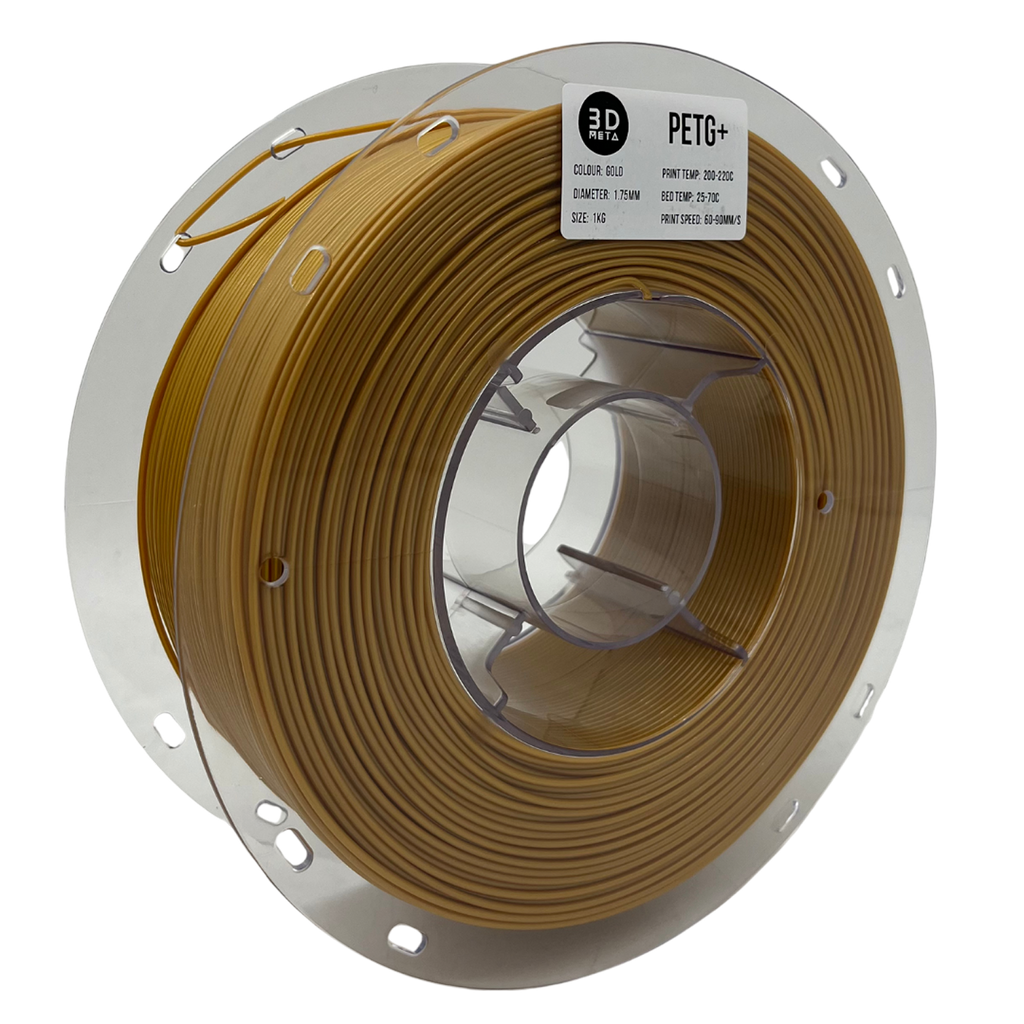

3D META’s PETG+ 3D printing filament is produced with high quality, specially modified polyethylene terephthalate glycol (PETG) material. Like our PETG, PETG+ is low warping and non-cracking, but has the added advantage of lower print and bed temperatures. This makes for an easier to print filament than standard PETG while still maintaining a high strength and high heat resistance.
PETG/PETG+ is best described as offering the strength of ABS with the easy printability of PLA, 3D META’s PETG+ is available in a wide range of colours and is suitable for a range of applications.
Key Features:
- Manufactured with high quality materials.
- ABS strength with PLA printability.
- Exceptional bed and layer adhesion.
- Low warping and non-cracking.
- Manufactured under strict QA procedures.
- Consistent, reliable, easy to print with filament.
PETG+ Printing Parameters:
Nozzle Temperature |
210℃ - 230℃ |
Bed Temperature |
25℃ - 70℃ |
Print Surface |
Most print surfaces ie. Glass, Meta Flex etc |
Model Cooling Fan |
0% - 50% |
Layer |
0.12mm - 0.3mm |
Printing Speed |
40mm/s - 60mm/s |
Idle Speed |
60mm/s - 120mm/s |
Retraction Distance |
1mm - 2mm |
Retraction Speed |
30mm/s - 50mm/s |
Supporting Materials |
Itself, PVA |
PETG+ Technical Specifications:
Physical Properties |
Test |
|
Density |
ISO 1183 |
1.27g/cm3 - 1.28g/cm3 |
MFR (250℃/2.16Kg) |
ISO 1133 |
8g/10min - 12g/10min |
Moisture Absorption (23℃/24h) |
ISO 62 |
<0.2% |
Mechanical Properties | ||
Tensile Strength |
ISO 527 |
41Mpa - 45Mpa |
Elongation at Break |
ISO 527 |
10% - 12% |
Flexural Modulus |
ISO 527 |
1400Mpa - 1500Mpa |
Flexural Strength |
ISO178 |
64Mpa - 66Mpa |
Impact Strength |
ISO180 |
5 - 6KJ/m2 |
Thermodynamic Properties | ||
HDT@ 0.455MPa (66 psi) |
ISO75 |
68℃ |
Continuous Use Temperature |
IEC 60216 |
65℃ |
Weights and Dimensions | ||
Spool Dimensions |
Outside Diameter: 200mm Width: 65mm Internal Hub Diameter: 52mm |
|
Spool Weight (without filament) |
150g |
|
Spool Weight (with filament) |
1.15kg |
|
Package Dimensions (LxWxH) |
210mm x 210mm x 75mm |
|
Package Weight |
1.3kg |
Applications:
Due to its overall strength, easy printability and wide range of colours, PETG+ can be used for a range of applications. It’s most commonly used for prototyping or function part that require high strength.
PETG/PETG+ does also have better UV resistance that PLA and can be used for parts that are outdoors.
Storage and Drying:
To prevent moisture absorption, it is recommended to keep your filament in a cool, dark, dry area, preferable sealed in an airtight bag.
Filament can be dried with various methods including a dedicated filament drying machine, food dehydrator, oven, or even your printer if it’s fully enclosed. For PETG and PETG+ filaments we recommend a drying temperature of 70℃ for a minimum of 5 hours.
